This article synthesizes research from a college on designing and retrofitting stadium lighting to meet UEFA standards while maximizing energy efficiency. The study centers on a 12,300-seat stadium requiring Category 4 certification for elite competitions.

1. UEFA Lighting Requirements

1.1 Horizontal Illuminance (Eh):

Champions League: ≥1,500 lx (avg), U1 (Emin/Eavg) ≥0.5, U2 (Emin/Emax) ≥0.7

Europa League: ≥1,400 lx (avg) with identical uniformity

1.2 Vertical Illuminance (Ev) for TV Broadcasts:

Measured at 1.5 m height in four perpendicular planes (Type 1) and toward main cameras (Type 2)

Champions League: ≥1,250 lx (avg), U1 ≥0.4, U2 ≥0.5

1.3 Additional Mandates:

Glare rating (UGR) <50

Color Rendering Index (Ra) ≥80

0.5 ≤ Eh_avg / Ev_avg ≤ 2 (Eq.2)

Color Temperature: 4,000–6,500 K

2. Stadium Performance Audit

2.1 Existing System (Metal Halide):

216 fixtures (2,060W each) on four masts (35.5–42 m height)

Energy Draw: 453.6 kWh per match

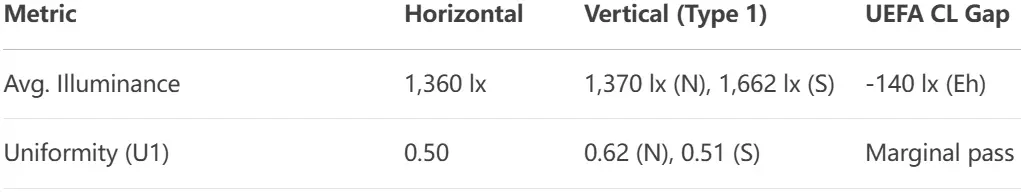

Measured Performance:

2.2 Deficiencies:

Subpar horizontal illuminance (1,360 lx vs. 1,500 lx requirement)

High energy consumption (108 lm/W efficacy)

Short lamp lifespan (4,000 hours)

3. LED Retrofit Solution

3.1 Implementation Strategy:

Replace 216 metal halide fixtures with 108 Ceramiclite LED luminaires

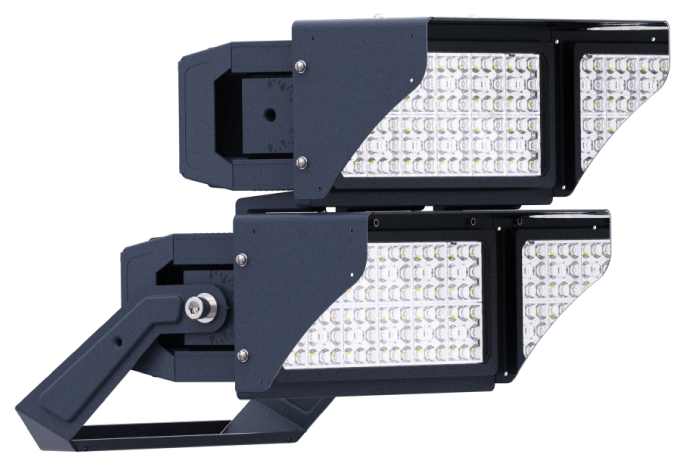

Ceramiclite Sport Light A02

Utilize existing masts and power infrastructure

3.2 Technical Specifications:

Power: 1,400 W/fixture

Efficacy: 150 lm/W (+39% efficiency)

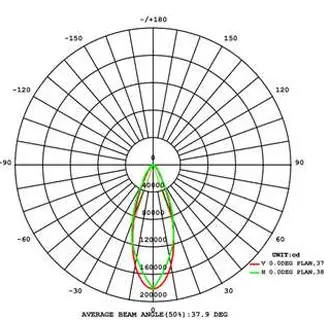

Light Distribution: Asymmetric optics

Surge Protection: 20kV/10kA (IEEE C62.41.2 Category C)

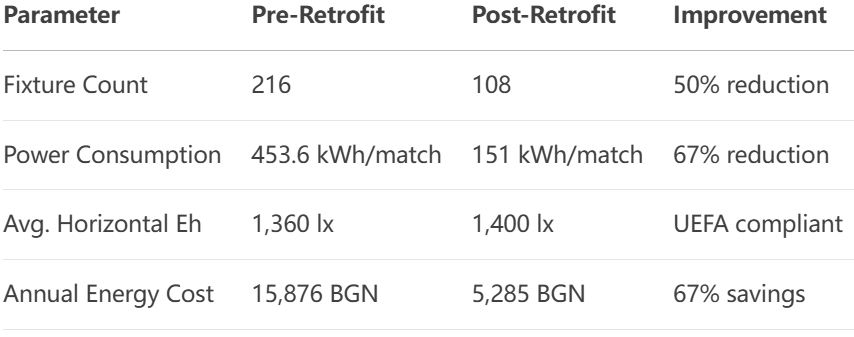

3.3 Performance Outcomes:

3.4 Critical Engineering Considerations:

Glare Control: Fixtures aimed at 28°–65° angles to maintain UGR <28

Weather Resistance: IP66 rating and extreme temperature compliance (ANSI C136.2)

Maintenance Reduction: LED lifespan >50,000 hours vs. 4,000 hours for metal halide

This study demonstrates that strategic LED retrofitting enables stadiums to:

Achieve UEFA broadcast-grade lighting with 50% fewer fixtures

Reduce energy costs by 67% while improving illuminance uniformity

Eliminate frequent lamp replacements through superior LED longevity

The solution validates that modern LED systems—when designed with precise optical control and surge protection—can transform aging sports infrastructure into sustainable, high-performance venues.
