HB01 LED High Bay Lights

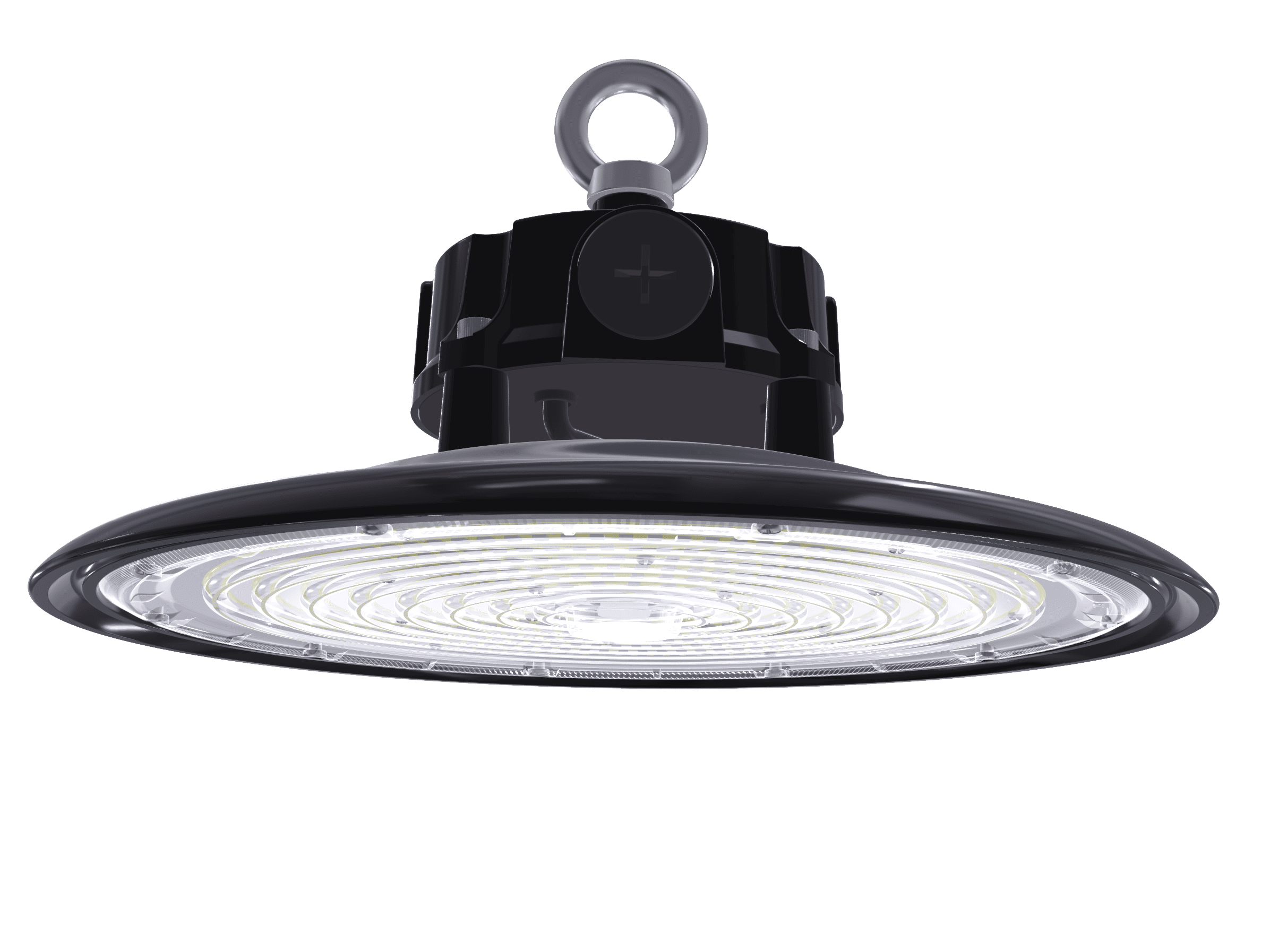

Ceramiclite HB01 LED High Bay Light
Brighten large spaces. Built to last.
Designed for demanding environments, the Ceramiclite HB01 LED high bay light delivers high-efficiency, long-lasting illumination for airports, seaports, and factories, with durable IP67/IP69K housing, flicker-free instant-start light, and customizable beam angles and color temperatures.
.png)

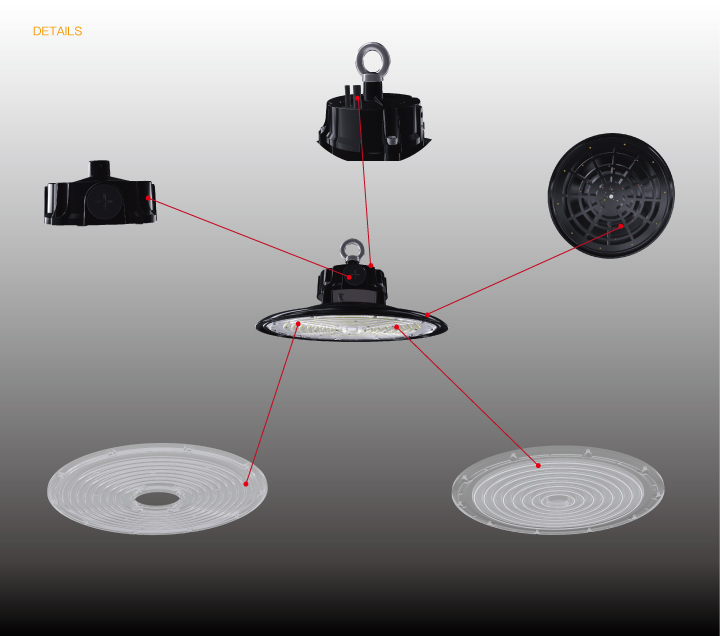

Crafted Details, Superb Quality
From the LED chips and heat sink to the precision lens, every component is engineered with meticulous attention. The installation interface and plug-and-play design are clearly showcased, with sharp light and shadow effects that highlight durability and premium craftsmanship.
.jpg)

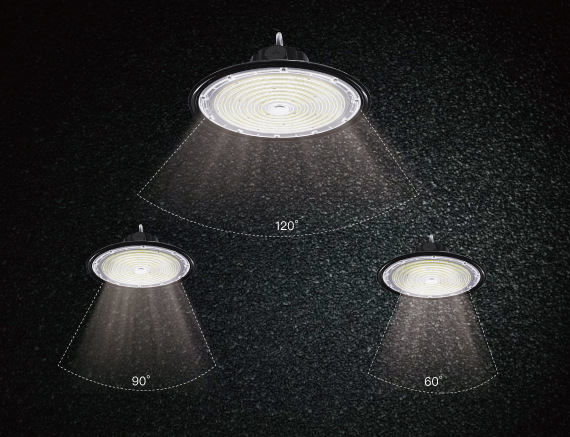

Adjustable Beam Angles
Showcasing flexible lighting performance with 60°, 90°, and 120° beam angles. Easily adapt illumination coverage to meet diverse industrial and commercial needs, ensuring both focused brightness and wide-area lighting.
.jpg)
Engineered for Longevity
Phosphor transparent ceramic LED technology ensures up to 102,000 hours of stable, flicker-free lighting, backed by an 8-year warranty.
.jpg)
.jpg)
.jpg)
.png)
Versatile for Every Industry.
Designed to deliver exceptional performance across a wide range of demanding environments—from manufacturing workshops and large-scale warehouses to livestock facilities and chemical-intensive dyeing plants.
Factory Workshops
Livestock Barns
Warehouses
Chemical Environment
Specifications
Series
HB01
Size
Medium, 297.3 × 161.8 mm
Input Power
60W / 80W / 100W
Input Voltage
90–240Vac
Color Temperature (CCT)
Customizable animal-specific spectra: 3000K / 4000K / 5000K / 6000K
Beam Angle
60° / 90° / 120°
Lens
Transparent
Luminous Efficacy
160 lm/W (±5%)
Luminous Flux (5000K)
60W ≥ 9600 lm (±5%)
80W ≥ 12800 lm (±5%)
100W ≥ 16000 lm (±5%)
Color Rendering Index (CRI)
70 / 80
Power Factor
EU: PF ≥ 0.95
US: PF ≥ 0.9
Flicker (%)
Compliant with ErP energy efficiency standard, flicker-free
Surge Protection
1 kV
Insulation Resistance
Class II
IP Protection
IP67 / IP69K
IK Rating
IK08
Operating Temperature
-30℃ ~ 35℃ (Indoor, IP67/IP69K)
Net Weight
2.8 kg
LED Type
Ceramic LED 3030
Lifetime
102,000 hours (L80B10@35℃)
Certifications
CE, RoHS, CB, CCC, UL, ETL
Dimming Method
Fixed + toggle switch (60°/90°/120°), 0/1–10V dimming, TRIAC / 0–10V compatible
Packaging Size
348 × 348 × 220 mm
