LED barn light T16
Introduction
The T16 LED barn lights are engineered as tri-proof luminaires for demanding environments. Built with anti-ammonia plastic housing, a fully waterproof structure, and a durable ceramic LED light source, the LED barnyard light delivers reliable performance while minimizing maintenance costs. With a long lifespan and outstanding energy efficiency, the T16 LED tube lights provide consistent, high-quality illumination—ideal for livestock barns, industrial facilities, and food processing plants.
Features
1. Advanced Ceramiclite LED with FTC technology (L90B20 @ 35°C) for long-lasting performance
2. IP69K and IP66 protection ratings guarantee superior durability
3. Anti-ammonia plastic housing designed for harsh farm environments
4. Withstands high-pressure cleaning up to 100 bar (1450 psi) and temperatures up to 85°C
5. Exceptional system efficiency of 150 lm/W for energy savings
6. Linkable design with qui options for easy installation
7. Eco-friendly construction with no mercury or UV emissions
8. Wide 360° beam angle for uniform illumination
9. Instant start with 100% brightness, no warm-up required
10. Flicker-free driver ensures stable, comfortable lighting
11. Backed by an 8-year warranty on the complete fixture
12. Certified by CE, RoHS, UL, CB, CCC, and ETL standards
Applications

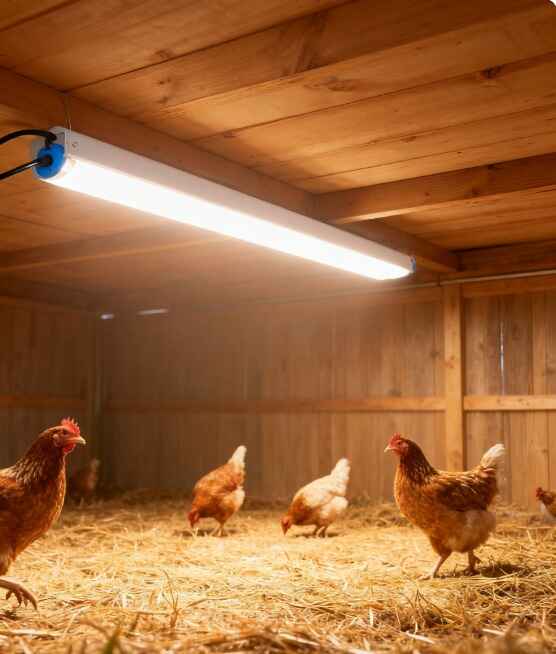

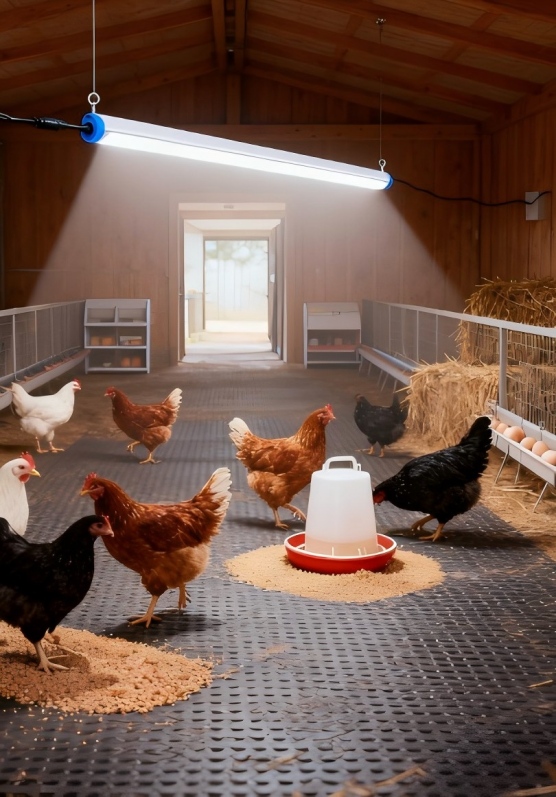

Enhance Animal Welfare and Boost Farm Productivity with Better LED Lighting
Swine Farms Lighting
Cattle Farms Lighting
Food Processing Plants Lighting
Car Washes Lighting
Dimension
Specifications
Series
T16
Model No.
T16-600T-20VD, T16-1200T-24VD, T16-1500T-30VD, T16-600T-20TD, T16-1200T-24TD
Dimension
Φ 50*607mm, Φ 50* 1207mm, Φ 50* 1507mm, Φ 50*607mm, Φ 50*1207mm
Input Power
20W/24W/30W/20W/24W
Input Voltage
AC90~264V 50/60Hz
CCT
Customize different spectrums according to the animals, 3000K/4000K/5000K/6000K
Beam Angle
360°
Cover
Transparent
Luminous Efficiency
150lm/W(±5%)
Lumen(5000K)
20W: ≧2898lm (±5%), 24W: ≧3495lm (±5%), 30W: ≧4582lm (±5%)
CRI
70/80
Surge Protection
2KV
Flicker(%)
Complies with ErP Energy Efficiency Certification, flicker-free Standard
Insulation Resistance
Class II
IP Rating
IP66/IP69K
IK Rating
IK08
Hydrogen Sulfide Gas
168H, With electricity, 40℃/90%RH, Concentration: 15ppm
Ammonia
72H, 30℃, Concentration: 28%, Without electricity
Operation Temperature
-20℃~35℃@IP66/IP69K Indoor environment
Storage Temperature
-40℃~70℃@5~90% RH
Weight (NW)
20W/0.6m—0.7kg, 24W/1.2m—1.055kg, 30W/1.5m—1.233 kg
Housing Material
PC+Aluminum alloy
LED Type And Numbers
3030 Ceramic: 20W-72pcs LED（8 series*9 parallels), 24W-96pcs LED（8 series*12 parallels), 30W-120pcs LED（8 series*15 parallels）
Lifetime
70000H(L90B20@35℃)
Certificates
CE, RoHS, CB, CCC, UL, ETL
Control Modes And Data
0/1-10V Dimming Triac Dimming
