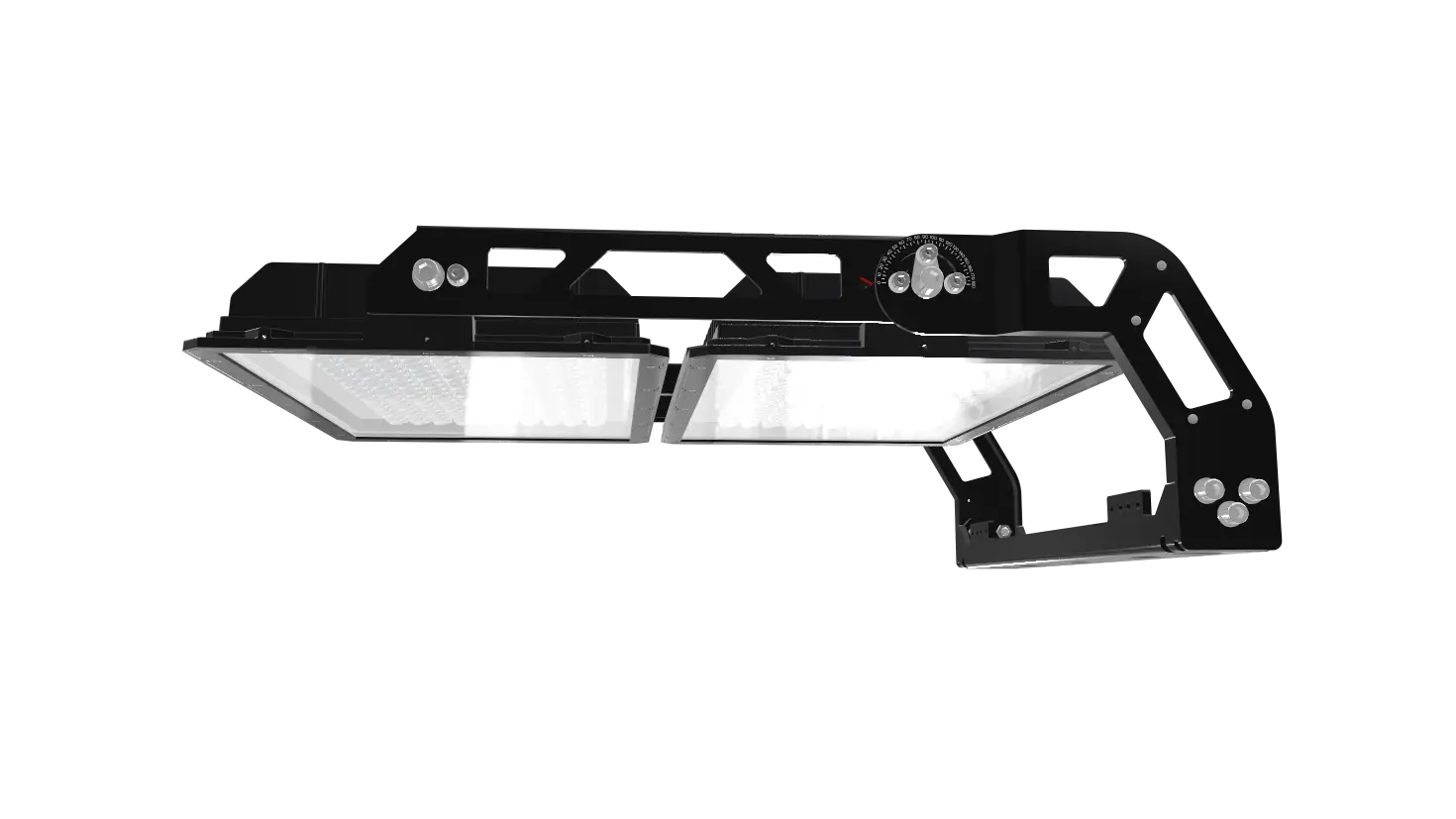

Sports Light SL03

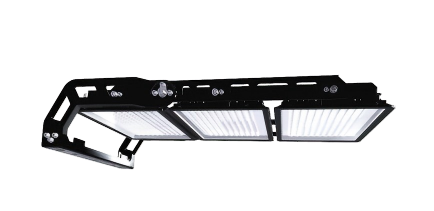

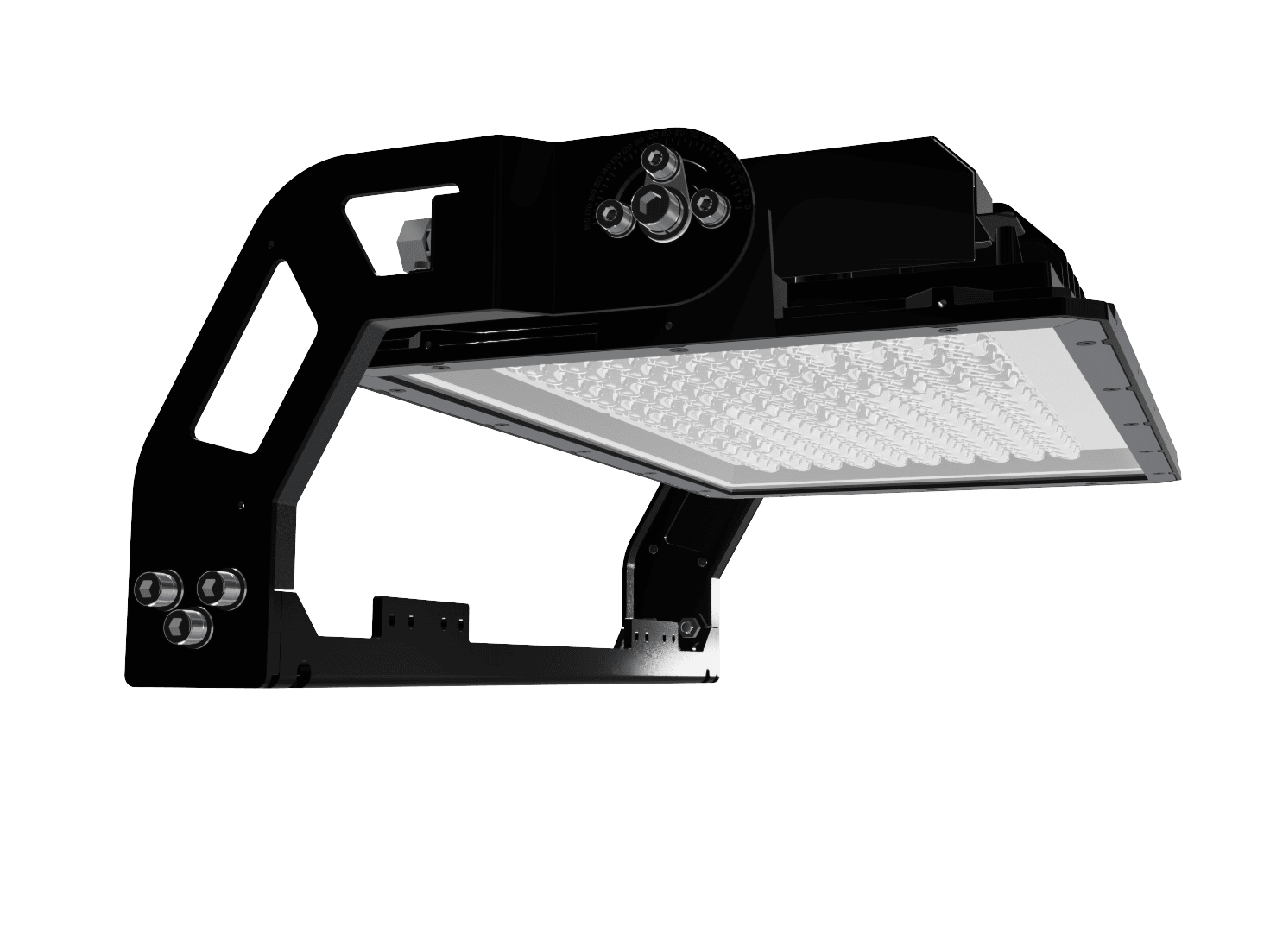

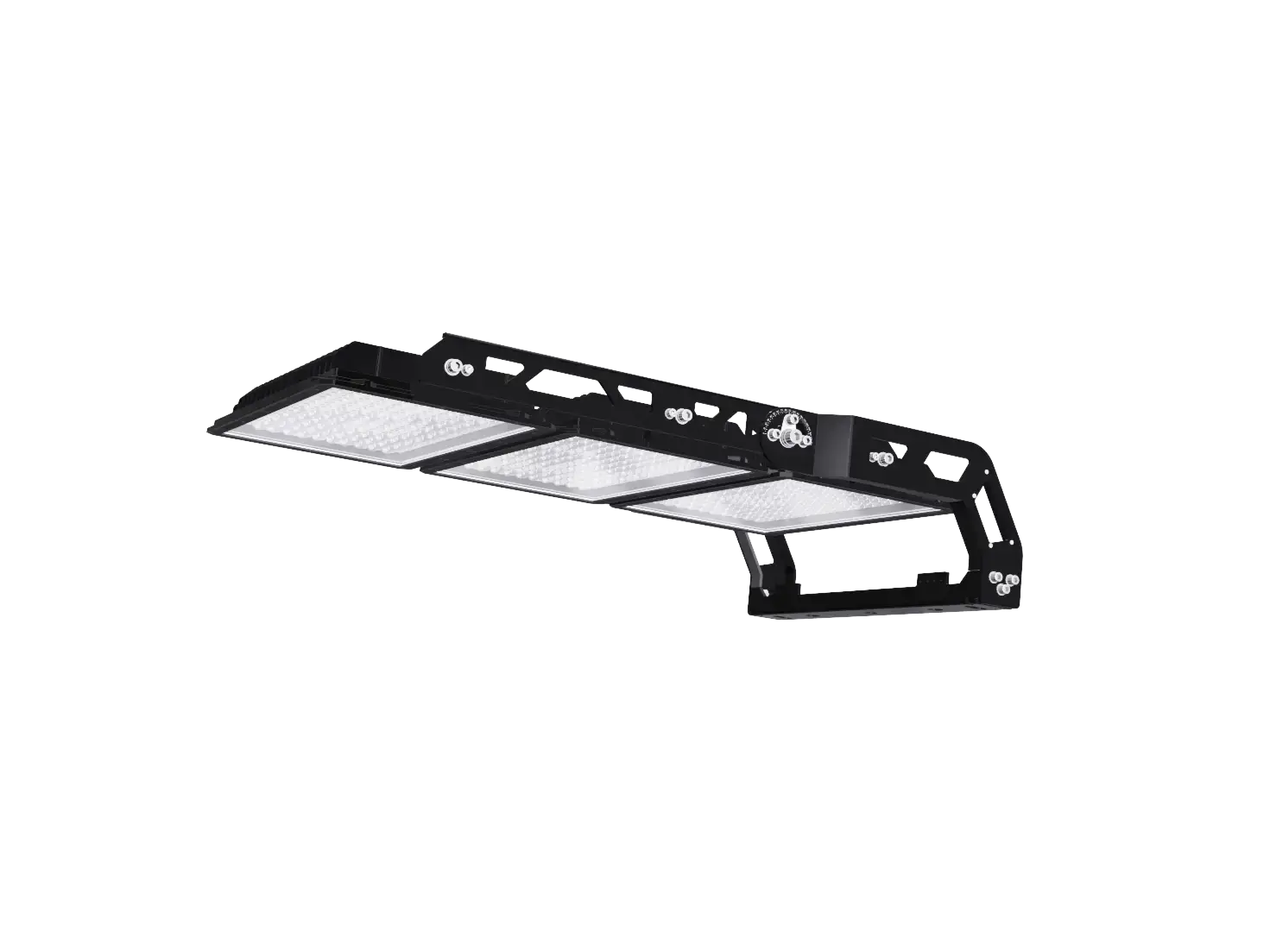

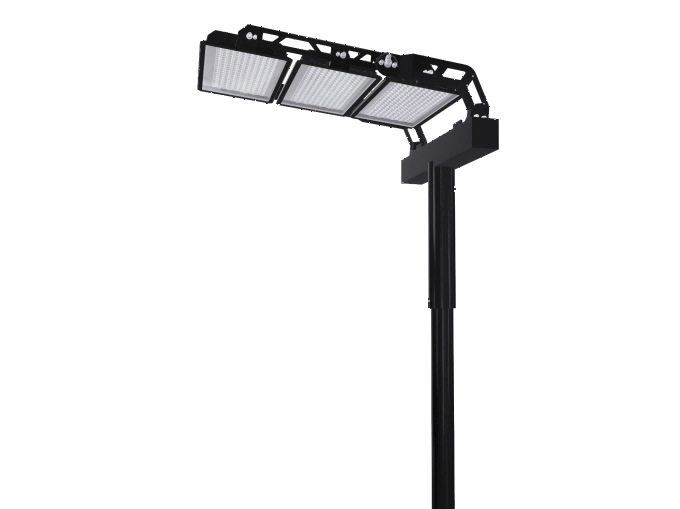

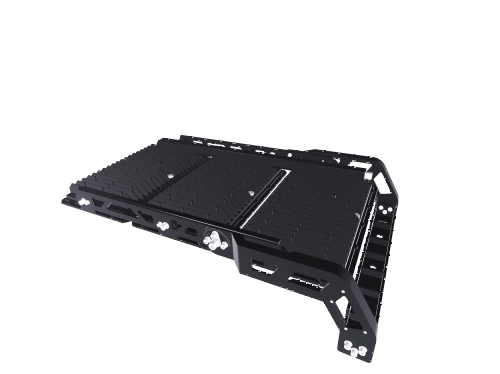

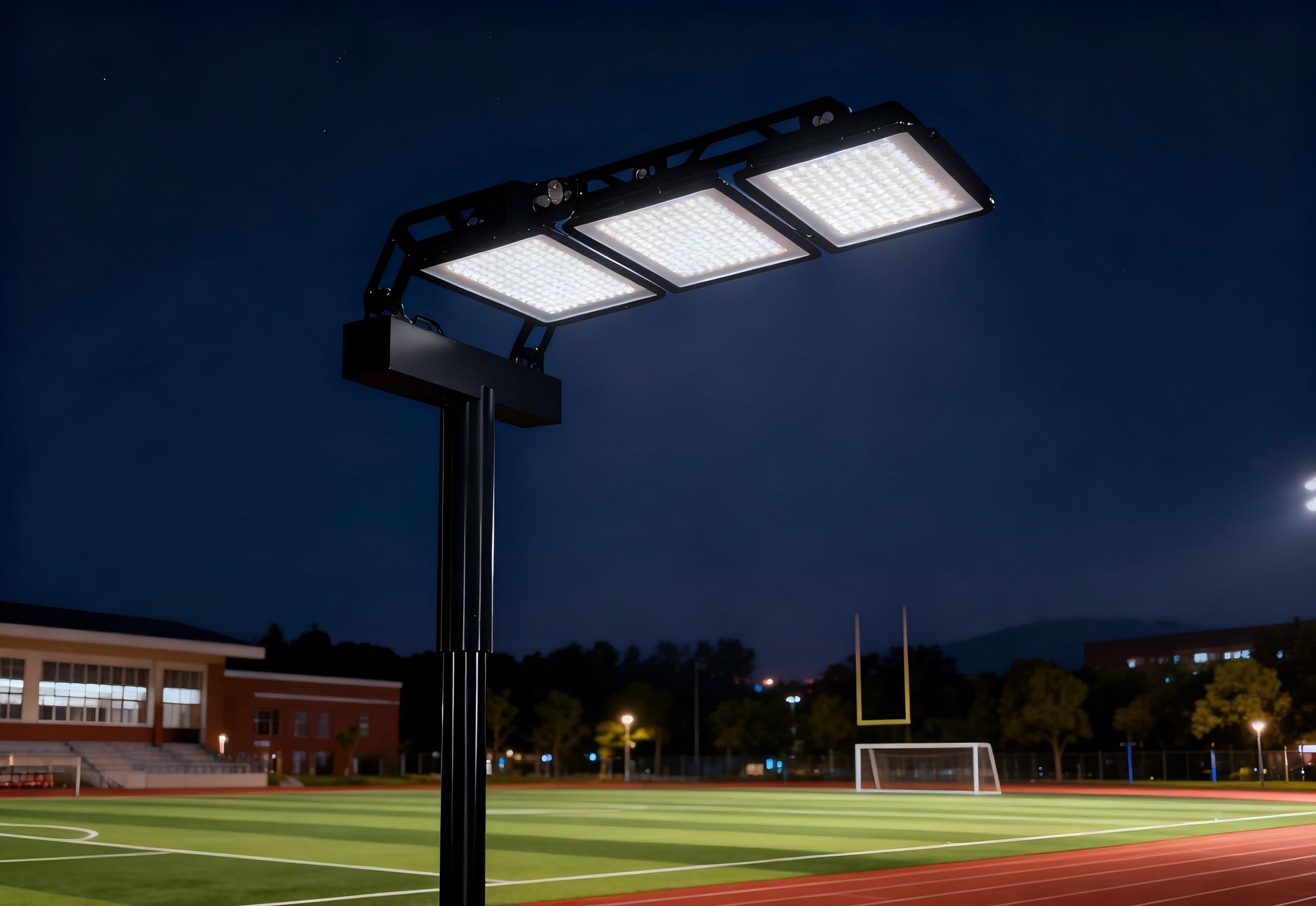

SL03 LED Floodlight for Stadiums
Broadcast‑Grade LED Sports Lighting
The SL03 LED Stadium Light is high-performance and cost-effective LED floodlight for professional sports lighting. Featuring a modular and lightweight design, the LED sports light offers excellent wind resistance and easy installation, ideal for stadiums, arenas, baseball fields, training grounds, and community sports facilities.
Smart Eco-friendly Sports Light
The SL03 LED sports light features DALI 2.0 control, high color accuracy (TLCI/CRI 90), and superior durability (IK09/IK10, C4/C5 corrosion protection, IP66 weathering, and 20KV surge protection) to ensure long term reliability and consistent performance.With eco-friendly materials and DIY-friendly construction, the SL03 Sports Light is ideal for sustainable and efficient sports lighting projects.
.webp)
LED Flood Light Advantages(1)
1. High-Efficiency Ceramic Core: Advanced ceramic LED technology provides superior thermal management and a prolonged lifespan.
2. Energy-Efficient & Cost-Effective: Lightweight, compact, and optimized for energy savings, offering excellent value.
3. Exceptional Optical Performance: TLCI 90 with optional CRI 90 ensures accurate color rendering, ideal for sports arenas and broadcasting applications.
4. Extreme Durability: C4 anti-corrosion, IP66-rated, and IK08-certified for reliable operation in harsh outdoor conditions.
5. Wind-Resistant & Low Load Design: Lightweight, low-profile construction minimizes pole stress and wind impact.
6. Smart & Flexible Control: DALI 2.0 compatible for intelligent dimming and energy management.
LED Flood Light Advantages(2)
7. Easy Installation & Adjustment: Bracket with clear scale allows precise angle setup; modular design enables quick, DIY-friendly assembly.
8. Dual-Layer Protection: PC lens combined with glass enhances durability and ensures uniform light diffusion.
9. Sustainable & Safe: Eco-friendly materials and 20KV SPD surge protection ensure long-lasting, safe performance.
10. Modular Stocking & Customization: Components are easily replaceable and configurable to suit different setups.
11. Certified Reliability: Compliant with international quality and safety standards.
12. 10-Year Warranty: Guaranteed dependable performance over the long term.
13. Industry-Leading Longevity: Lab-tested performance: L80B10@102,000H (45°C) & L90B30@51,000H (45°C).
Dimension
_2.webp)
.webp)

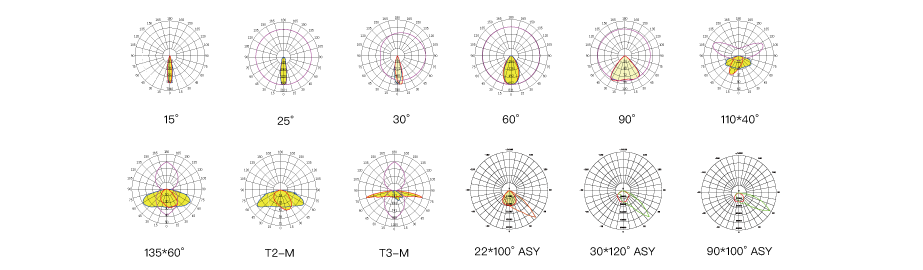

Beam Angle
Applications of SL03 LED Sports Lights
Explore Ceramiclite LED stadium lights: advanced ceramic LED lighting solutions specifically designed for stadiums, arenas, athletic fields, and courts.
Football Field Lighting
Baseball Field Lighting
Basketball Court Lighting
Rugby Court Lighting
Specifications
Model No.
SL03-0600/0700/0850
SL03-1200/1400/1700
SL03-1800/2100/2550
Wattage
600W/700W/850W
1200W/1400W/1700W
1800W/2100W/2550W
Lumen Flux(±10%)
96,000Lm-136,000Lm
192,000Lm-272,000Lm
288,000Lm-408,000Lm
Efficacy(5700K Ra)
≥160Lm/W
Beam Angle
15°/25°/30°/55°/60°/90°/T2-M / T3-M / T4-M / T3-S/110*20°/110*40°/135*60°/140*65°
CCT
3000K/4000K/4500K/5000K/5700K/6500K
CRI
≥70/80/90
SDCM
≤5
Input Voltage
180~277Vac, 90-305Vac, 176-305Vac, 180-528Vac, 50/60Hz
Power Factor
≥0.95
THD
≤10%
Percent Flicker（%）
≤1%
Surge Protetion
10KV/20KV
Protetion Against Electric
ClassI
IP
IP66
EPA
0.22m²
0.44m²
0.66m²
IK
IK08/IK10
Operation Temp Range
-40°C~+45°C(Outdoor Environment)
Lifetime
51,000H(L90B30@45°C)/102,000H(L80B10@45°C)
Intelligent Control
0-10V Dimming/Non-dimming/Dali-2&D4i/DMX-RDM
Warranty
10 Years
Certificate
ENEC/CB/SAA/ETL/CE/LM-79/TM-21
LED Brand
Ceramiclite LED
Driver Brand
INVENTRONICS/SOSEN
Structure
Die-casting/High Thermal Conductivity Aluminum
Lens
Polycarbonate
Color
Black
Finish
C5 (Neutral Salt Spray Test, 1500 hours)
