Precision Optical Design for Sports Lighting
Technical Principles and Performance of Optical Design
High-performance sports lighting is not defined by wattage alone. True lighting performance is achieved through optical design: the precise control of how light is distributed, aimed, and maintained across a playing surface. It demands precision optical engineering tailored to field geometry, pole height, beam distribution, and performance standards. Optical design determines how efficiently luminous flux is transformed into effective illuminance (lux) on the playing surface. Precision optical systems ensure that light is delivered exactly where it is needed, in the right quantity and direction. This is the foundation of professional sports lighting performance.
This guide explains the core optical principles behind modern LED sports lighting, including beam angle selection, illuminance calculation, uniformity control, and glare reduction, all essential for stadiums, sports fields, and broadcast-grade facilities, and at the same time introduces Ceramiclite’s SL03, SL05 and SL06 LED sports floodlights, which are engineered precisely for these challenges, blending high lumen output with advanced optical control to achieve uniform, low-glare, and efficient lighting for demanding stadium, training field and broadcast-ready environments.

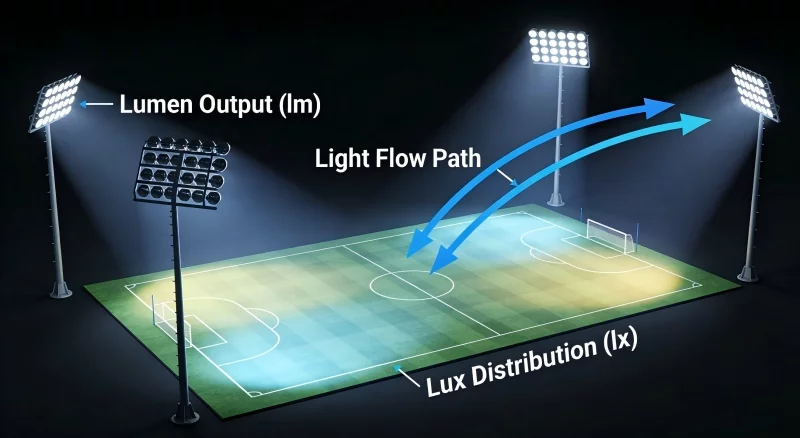

Understanding Illumination and Lumen Distribution
In lighting design, the first step is transforming raw luminous flux (measured in lumens) into practical illuminance (measured in lux), which represents the amount of light that actually reaches the playing surface—a critical metric in sports lighting. Higher lumen output does not automatically guarantee better performance; what matters is how well that light is distributed across the field.
Ceramiclite sports LED floodlights like the SL03 can deliver up to 408,000 lumens of total flux with efficacies ≥160 lm/W, providing the raw power needed for large venues. However, without proper optics, much of this output could illuminate unwanted areas or contribute to glare.
Beam Angle Selection for Stadium and Field Lighting
LED floodlight’s beam angle determines how broadly or narrowly its light is spread. Technically, the beam angle is defined as where the light intensity drops to 50% of the peak output (B50)—the effective width of the light cone used for design calculations.
1). Narrow beam angles (e.g., 15°) concentrate light for distant throw and minimal spill — ideal for high-mast applications and long-range coverage.
2). Medium beam angles (e.g., 30° / 60°) balance distance and width for general field coverage.
3). Wide or complex beam patterns ensure even illumination across surfaces with minimal dark spots.
Ceramiclite sports LED floodlights offer a wide range of beam options, from narrow 15° up to complex asymmetric distributions (such as 110 × 20° or 140 × 65°), enabling designers to tailor light distribution to pole height, field dimensions, and uniformity targets.

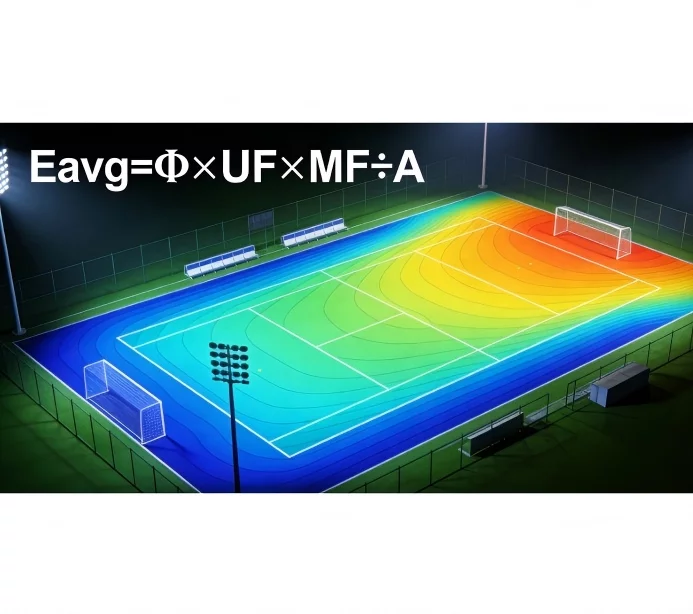

Calculating Illuminance and Uniformity
The most critical outcomes of optical design are illuminance (lux) and uniformity across the playing surface. Illuminance can be estimated using a simplified relation:
E ≈ Φ × UF × MF / Area,
where E is average illuminance, Φ is total fixture lumens, UF is utilization factor (impact of optics and geometry), and MF is maintenance factor (accounting for lumen depreciation over time).
For high-performance fields, designers often target uniformity ratios (min/avg) ≥ 0.7, meaning the darkest point should be no less than 70% of the average. Uniform optics and correct beam selection are critical for meeting this requirement, a poor choice leads to “hot spots” or dark pockets that negatively affect play and broadcast quality.
Ceramiclite’s modular optical systems are specially shaped to spread light efficiently across irregular field shapes while minimizing overlap loss. By selecting appropriate beams and installation angles, designers can achieve both required lux levels and high uniformity.

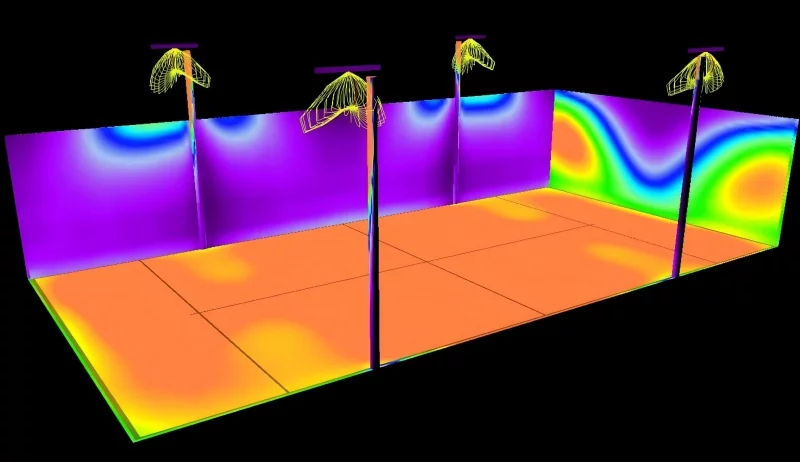

Optical Modeling: Asymmetric and Freeform Distributions
Modern stadium lighting moves beyond simple circular beam patterns. Traditional symmetric beam patterns distribute light evenly in all directions — often inefficient for rectangular fields. Asymmetric optics and freeform lens designs adapt light distribution to field proportions, pole layouts, and adjacent lighting zones. These geometries allow precise control over where light lands, avoiding wasted spill and reducing glare.
Ceramiclite optical options like T030-000 or T120-045 patterns are examples of these advanced distributions, aligning light contours with actual playing surfaces rather than generic cones—a critical advantage for broadcast-grade lighting where crisp, consistent visuals are essential.

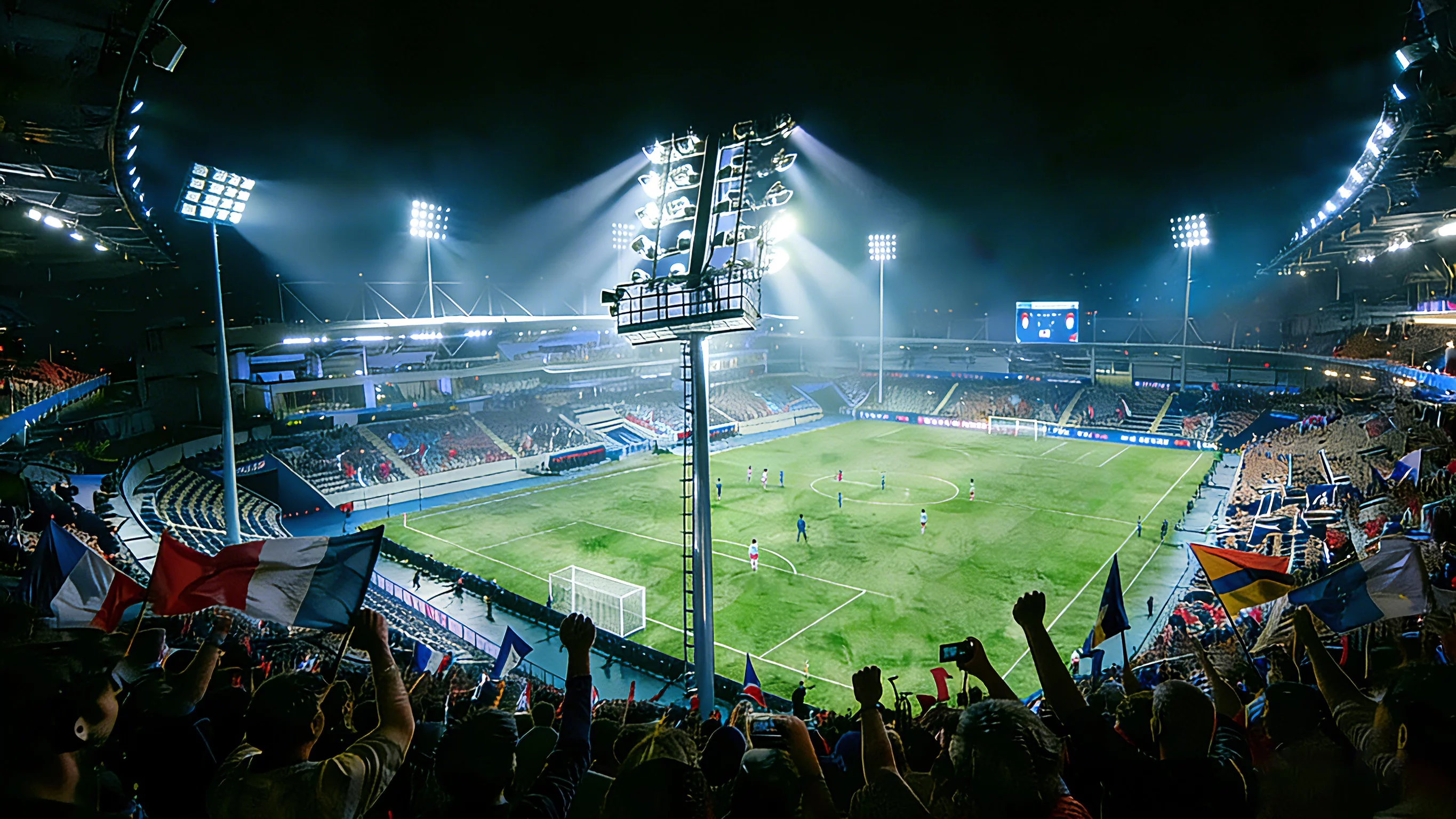

Controlling Glare and Color Performance
Beyond distribution, glare control, which limits uncomfortable brightness, is essential for athlete performance and spectator comfort. High uniformity ensures consistent visibility across the field, reducing eye fatigue and improving athletic performance. Poor optical design leads to sharp brightness contrasts that negatively affect gameplay and broadcast image quality.
Optics designed with proper cut-off angles and shields ensure that high lumen output does not translate into visual discomfort or light pollution.
Ceramiclite’s lens systems also support high color fidelity (CRI/TLCI 90), ensuring accurate color rendering and quality video capture for television broadcasts—an increasingly stringent requirement for professional stadiums.

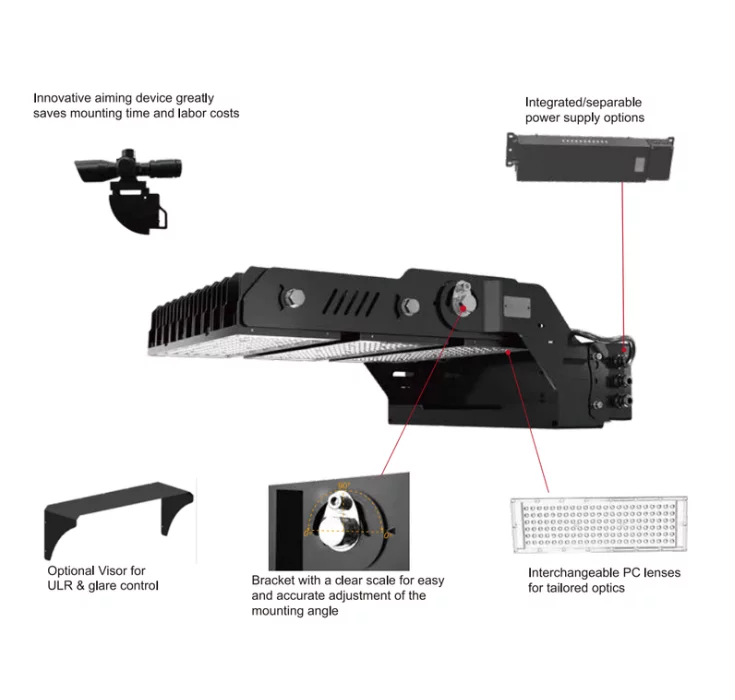

Thermal, Optical, and Mechanical Integration
Optical performance cannot be isolated from thermal and mechanical considerations. High-flux LEDs generate heat that can degrade output if not effectively managed. Ceramiclite’s advanced ceramic LED modules provide superior thermal stability, enabling the optical system to maintain precise performance over long lifespans.
The integration of optical design with robust housing (IP66 rated) and smart control protocols (DALI/DMX) ensures that the chosen beam patterns and photometric goals remain consistent even in harsh outdoor conditions.
Precision Optics Design for Better Performance
In sports lighting, true performance emerges at the intersection of photometric science and application engineering. It is not enough to have a powerful light source: the light must be shaped, directed, and controlled to deliver uniform, low-glare illumination that meets technical standards and human visual needs. By integrating advanced optics with robust thermal design and accurate installation planning, sports lighting systems can deliver consistent, energy-efficient, and broadcast-ready illumination, ensuring that every lumen contributes to real-world performance.
Ceramiclite’s SL03, SL05, and SL06 LED sports floodlight leverage a broad spectrum of beam angles, optical patterns, and advanced ceramic LED technology to achieve these goals, transforming luminous flux into lighting that enhances gameplay, improves safety, and elevates broadcast quality in even the most demanding sports environments.
