Smart Lighting Systems for Giantstar Farming and Husbandry
Project Overview of Smart Lighting Systems
Client: Leshan Giantstar Farming and Husbandry Corporation Limited (Sichuang, China)
Industry: Livestock Farming (Pig Production)
Application: Breeding house, farrowing house, and gilt development house
Solution: Ceramiclite T8 Tri-proof Livestock Lighting + Intelligent Dimming Control System.
Giantstar Farming and Husbandry is a modern livestock enterprise focusing on high-efficiency pig production. To improve animal welfare, optimize lighting conditions, and reduce energy and maintenance costs, Giantstar Farming and Husbandry partnered with Ceramiclite to deploy a smart dimmable lighting system across multiple pig housing facilities.
Challenges of Smart Livestock Lighting
Livestock environments present extreme challenges for lighting systems, including:
-
High humidity, ammonia, and corrosive gases
-
Frequent high-pressure washing and sanitation
-
Strict lighting requirements for animal growth and reproduction
-
Energy consumption optimization targets
-
High maintenance costs and lamp replacement frequency
Solution: Ceramiclite Smart Livestock Lighting System
Ceramiclite provided a complete lighting solution combining high-performance tri-proof LED fixtures with intelligent dimming controllers.
-
1️⃣ High-Performance T8 Tri-Proof Livestock LED Fixtures
● IP67 waterproof and dustproof design
● Resistant to ammonia, acids, alkalis, and sulfur
● High-pressure wash resistance up to 100 bar and 85°C
● Ceramic LED technology with FTC thermal management
● Efficiency up to 150 lm/W
● Flicker-free dimming from 0–100%
● 8-year warranty and long lifespan
These fixtures are specifically engineered for livestock houses and food processing facilities, ensuring long-term reliability and low maintenance. -
2️⃣ Intelligent Dimming Control System
The project deployed smart lighting controllers to simulate natural daylight cycles and optimize animal circadian rhythms.
Key Features:
● Programmable lighting schedules for different growth stages
● Smooth sunrise and sunset simulation
● Manual override and real-time monitoring
● Digital CPU-based dimming accuracy
● Touchscreen control interface
● Backup battery for uninterrupted programming

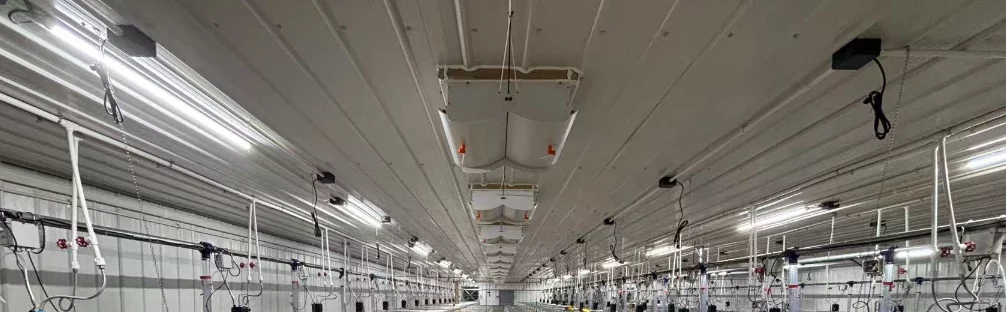

Swine Breeding House
Facility Specifications & Lighting Configuration
Floor Dimensions: 158.4 m (L) × 39.8 m (W)
Mounting Height: 2.45 m
Lighting Configuration:
General Lighting:
T8 / 1.2 m / 24 W / Non-dimmable
Quantity: 408 pcs
Layout: 12 rows × 34 fixtures per row
Estrus Stimulation Zone:
T8 / 1.8 m / 24 W / Triac Dimmable
Quantity: 126 pcs
Layout: 3 rows × 42 fixtures per row

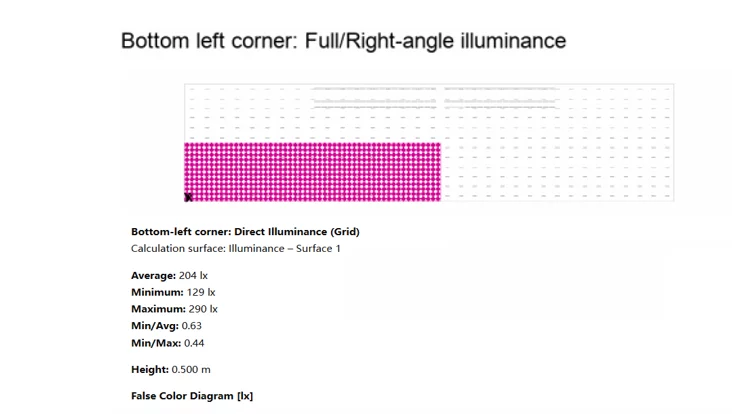

Disclaimer about Lighting Simulation
The above simulation results are provided for reference purposes only. The T8 / 1.2 m / 24 W / non-dimmable configuration does not constitute the final acceptance criteria. All simulated illuminance values are indicative estimates, and actual measured values may vary depending on on-site environmental factors.

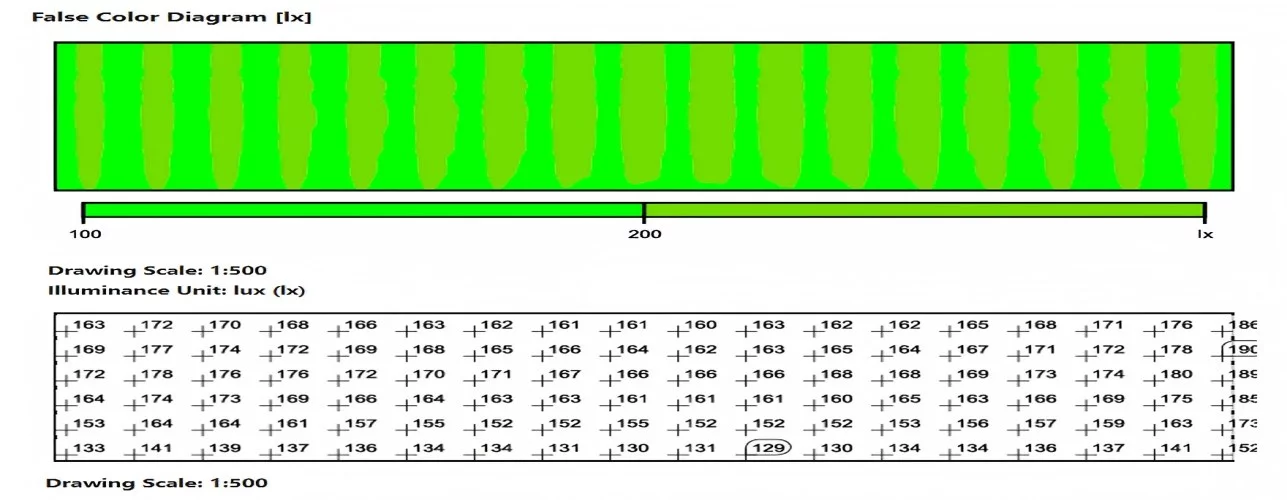

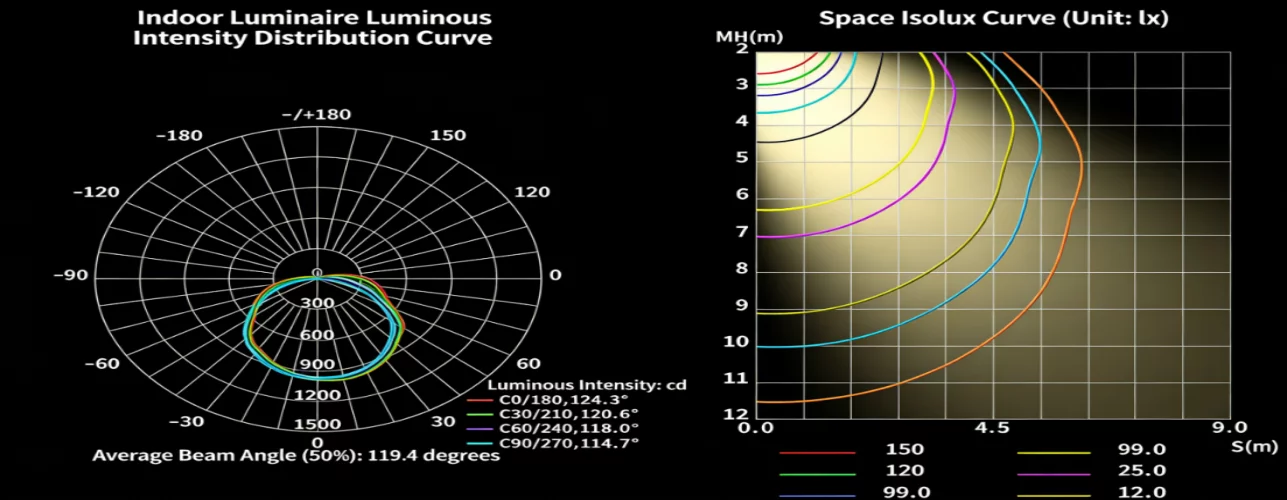

Lighting Distribution
_1.webp)

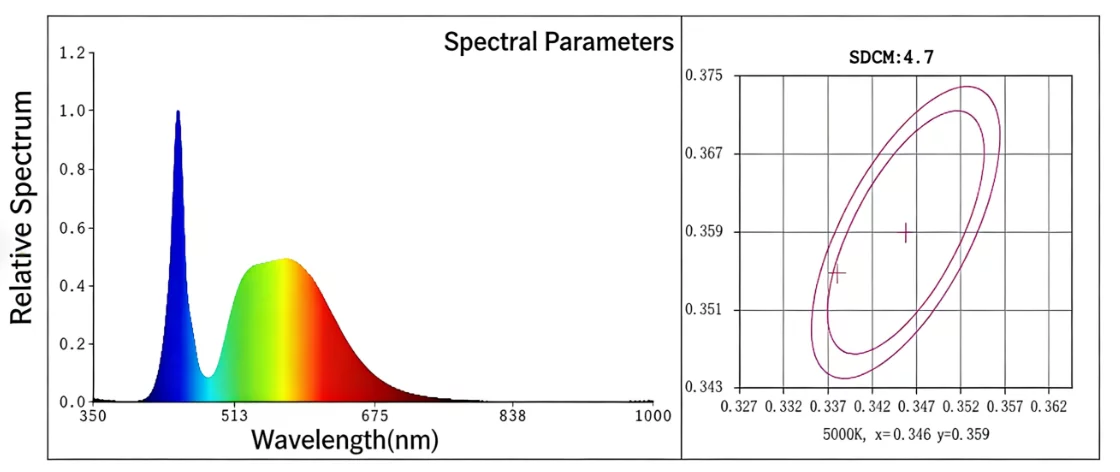

CIE Color Parameters
Chromaticity coordinates: x = 0.3382, y = 0.3548 / u' = 0.2055, v' = 0.4852 (duv = 4.43e-03)
Correlated color temperature: CCT = 5274K
Dominant wavelength: λd = 563.0 nm
Color purity: Purity = 7.9%
Peak wavelength: λp = 447 nm
Full width at half maximum: FWHM = 15.8 nm
Color ratio: R = 13.7%, G = 83.2%, B = 3.0%
Color rendering index: Ra = 72.1
R1 = 70, R2 = 76, R3 = 80, R4 = 74, R5 = 71, R6 = 68, R7 = 80
R8 = 57, R9 = 0, R10 = 43, R11 = 73, R12 = 43, R13 = 70, R14 = 89, R15 = 64
