SL06 Sports LED Light
SL06 Modular LED Floodlight
High Mast Lighting
Designed for outdoor sports and large-area high mast lighting, the SL06 sports LED light delivers powerful output, flexible modular configurations, and long-lasting performance with a compact, low-wind-load design.
.webp)

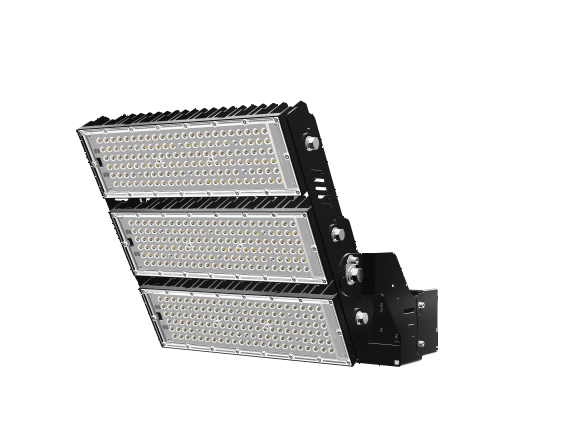

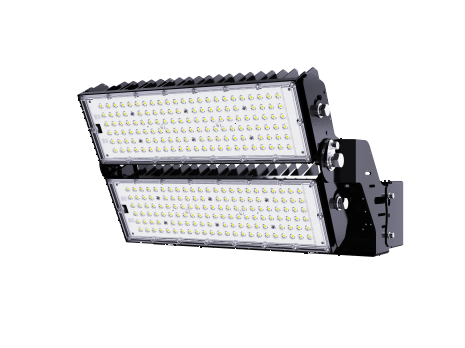

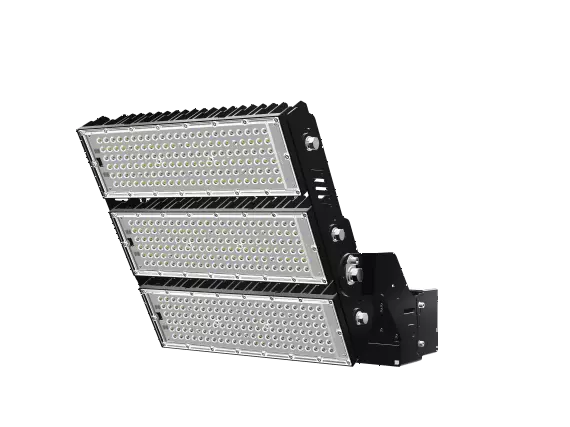

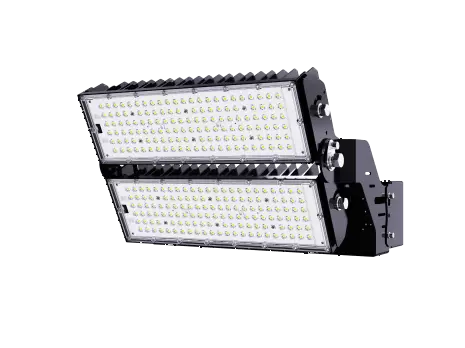

LED Modular Floodlight

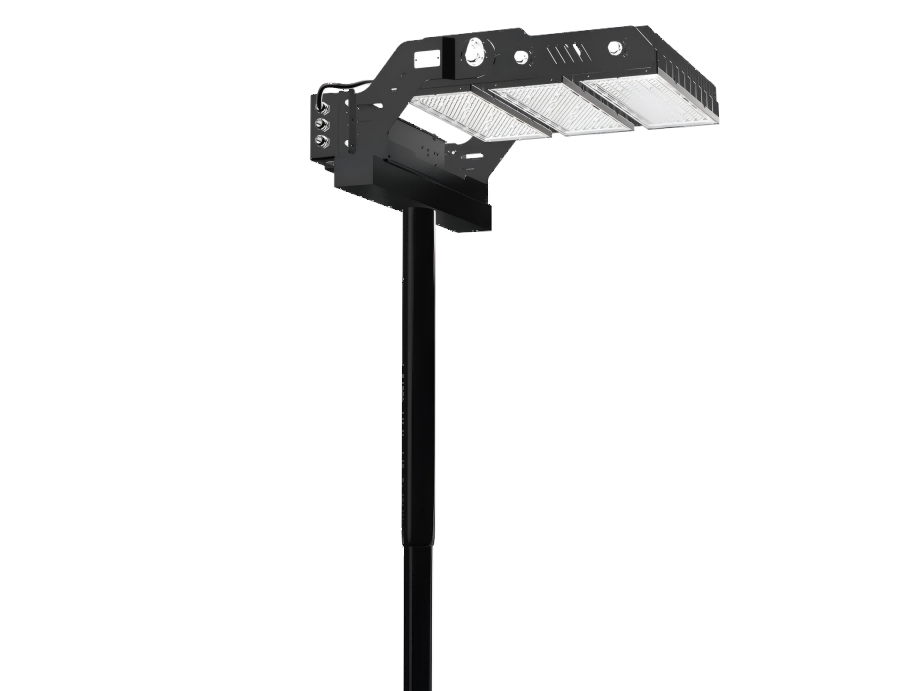

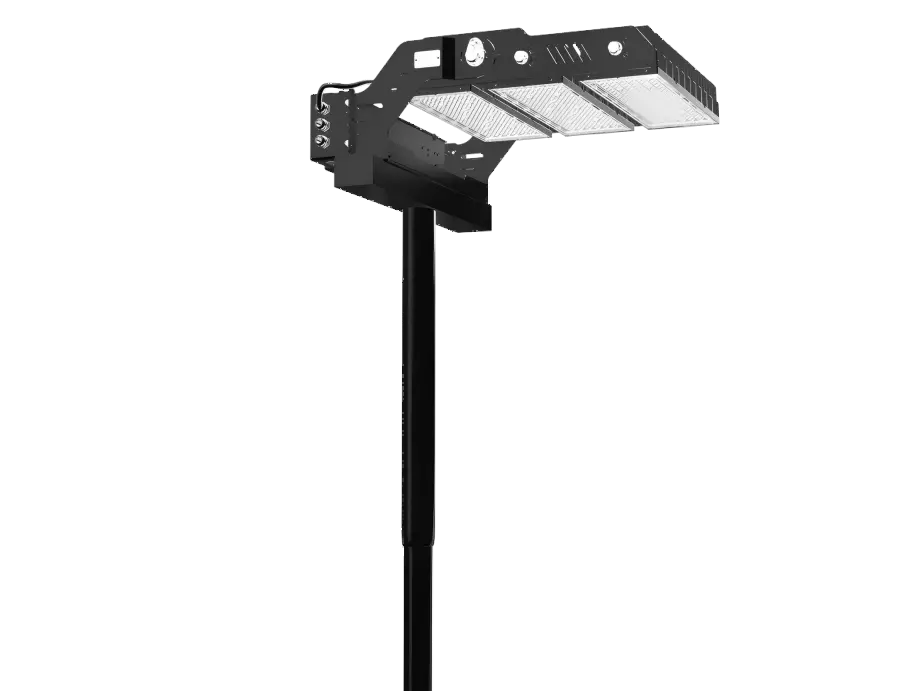

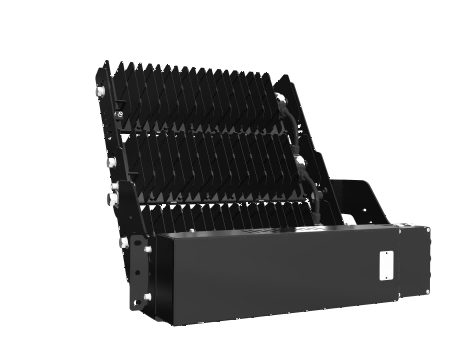

With its lightweight 300W modular architecture, the SL06 stadium LED floodlight allows you to combine units to create 320W, 680W, 900W, or 1200W solutions. It supports both integrated and split installation, giving you the freedom to match the lighting structure to your project.
Choose the high mast light that fits your field.
Whether you need a single compact module or a high-power multi-module setup, the SL06 LED high mast light for sports adapts effortlessly. Multiple beam angle options offer precise light distribution for football fields, airports, plazas, and other outdoor environments.

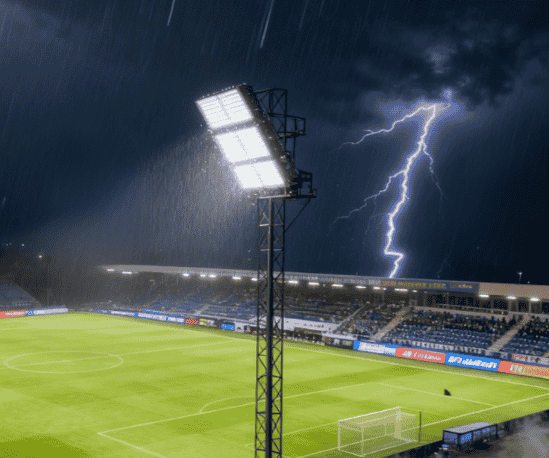

LED Floodlight Built to withstand
The SL06 high-mast LED floodlight delivers full-scale durability with IP66 waterproofing, IK10 impact resistance, C4 anti-corrosion performance, and 20kV surge protection. This rugged luminaire is designed to operate reliably in harsh weather, coastal areas, and industrial outdoor conditions.

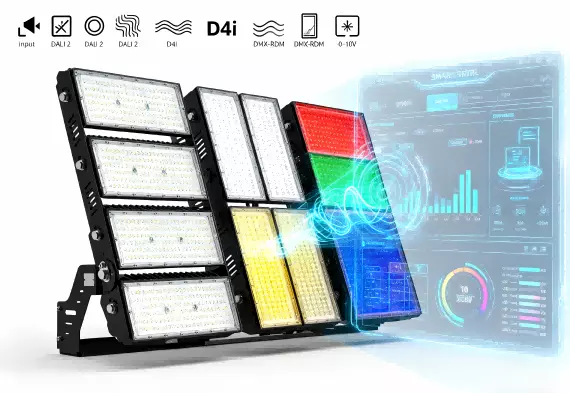

Stadium lights with Smart control.
Compatible with DALI-2, D4i, DMX-RDM, and 0–10V dimming, the SL06 high-power sports LED light integrates seamlessly with intelligent lighting systems. Selectable CCT and CRI options help you customize visual performance for every application.
.webp)

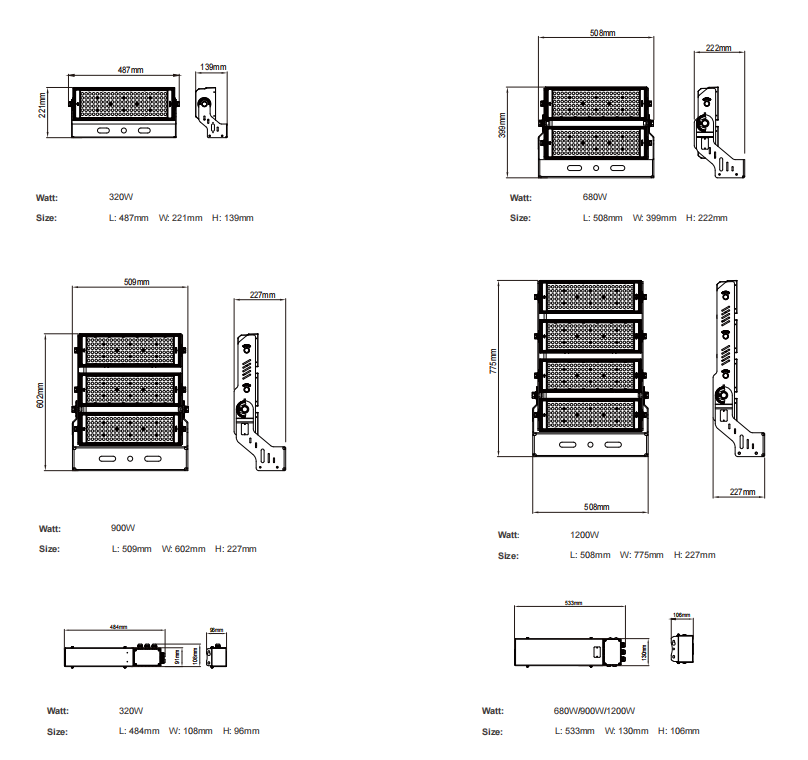

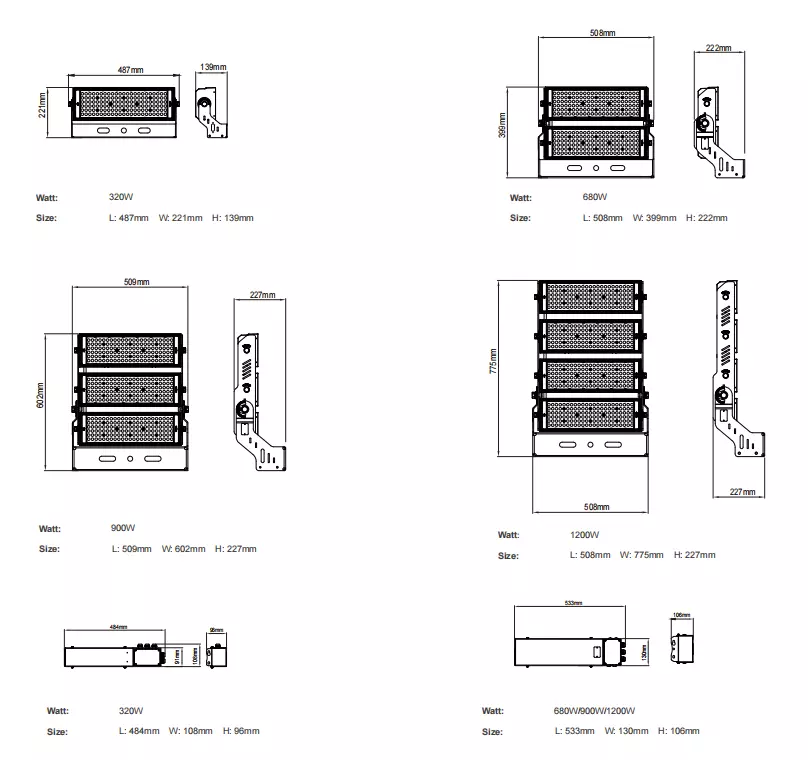

Dimension
The SL06 LED floodlight offers a modular, high-power design with multiple wattage options—from 320W to 1200W—each featuring precise length, width, and height specifications to fit diverse outdoor and industrial installations. Its compact single-module versions and larger multi-module configurations ensure the right balance of power and footprint, making SL06 adaptable for poles, walls, and large-area lighting structures.

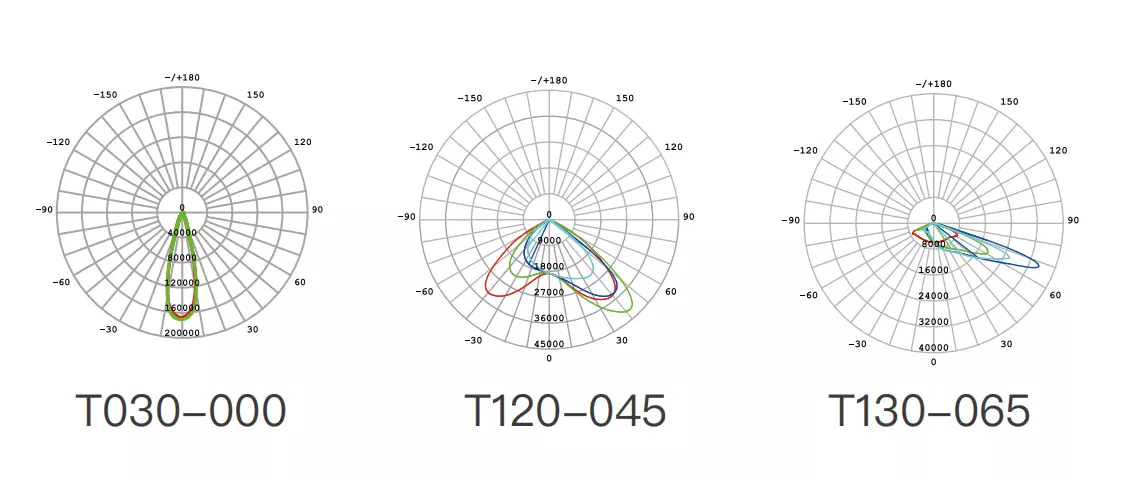

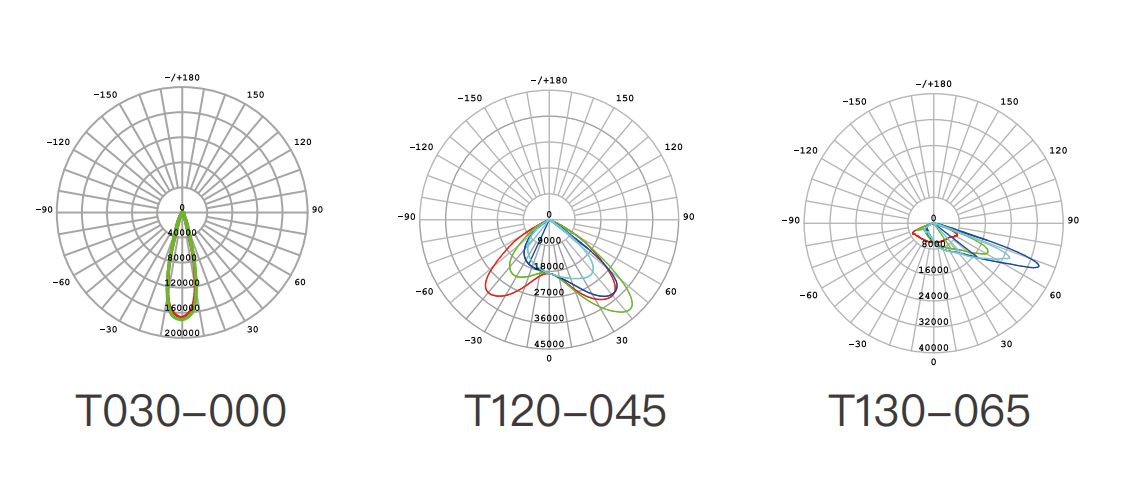

Beam Angle
.webp)
Applications
Ideal for football fields, airport aprons, plazas, industrial yards, sports complexes, and large outdoor areas requiring cost-effective, high-output, and low-wind-load lighting.
Football Court Lighting
Tennis Court Lighting
Basketball Court Lighting
Airport LED Lighting
Specifications
Model No.
SL06-320 / SL06-680 / SL06-900 / SL06-1200
Wattage
320W / 680W / 900W / 1200W
LED3535 Lumen Flux(±10%)
44,800 lm / 95,200 lm / 126,000 lm / 168,000 lm
LED5050 Lumen Flux(±10%)
51200Lm / 108800Lm / 144000Lm / 192000Lm
Efficacy LED3535 (5700KRa)(±5%)
140lm/W
Efficacy LED5050 (5700KRa)(±5%)
160lm/W
Beam Angle
T030-000/T120-045/T130-065
CCT
3000K/4000K/5000K/6000K
CRI
≥70/80/90
SDCM
≤5
Input Voltage
277~480Vac, 50/60Hz / 200~240Vac, 50/60Hz
Power Factor
≥0.95
THD
≤10%
Surge Protetion
20KV
Protetion Against Electric
ClassI
IP
IP66
IK
IK10
Operation Temp Range
-20°C~40°C(Outdoor Environment)
Lifetime
102,000H(L80B10@40°C)
Intelligent Control
0-10V Dimming/Dali-2&D4i/DMX-RDM
Certificate
ENEC/SAA/CE/CB
Driver Brand
INVENTRONICS/DONE
Finish
C4 (Neutral Salt Spray Test 1000 hours)
FAQ
-
The SL06 Sports LED Light is engineered for large-area outdoor lighting applications, including sports fields, stadiums, training grounds, airports, seaports, and industrial zones where high lumen output, uniform coverage, and long-term reliability are essential.
-
The SL06 features:
1). High lumen output for broad coverage
2). Precision optical distributions for field-specific illumination
3). Robust thermal management for peak performance
4). Industrial-grade drivers for stable electrical performance
5). High ingress protection (IP66) for harsh outdoor conditionsThese features ensure stable, efficient, and professional lighting performance for demanding environments.
-
The SL06 supports a range of optical distributions, including wide and asymmetric beam angles: T030-000/T120-045/T130-065, tailored for different mounting heights and field geometries. These optics improve coverage uniformity while minimizing glare and light spill outside the target area.
-
The SL06 supports 277~480Vac, 50/60Hz / 200~240Vac, 50/60Hz, making it suitable for global installations. This allows compatibility with varied electrical systems across different regions and project specifications.
-
An IP66 rating means the SL06 is fully protected against dust ingress and strong water jets from any direction. This makes it suitable for outdoor environments with heavy rain, dust, or coastal conditions.
-
Yes. With its precision optics, high lumen output, and controlled glare design, the SL06 can meet broadcast and competition lighting requirements when properly configured with the right beam angles and pole heights.
-
Yes. Ceramiclite offers professional lighting design and simulation support, including layout planning, illuminance and uniformity modeling, beam angle recommendation, and project documentation to help ensure your installation meets performance requirements.
Frequently Asked Questions
We help the world’s leading organizations follow their shipping
-
Yes. Ceramiclite LED luminaires are engineered for demanding environments, including coastal, marine, industrial, and agricultural settings. Products feature robust housings, high IP ratings, corrosion-resistant materials, and advanced thermal management to ensure stable performance in harsh conditions.
-
Ceramiclite uses professional-grade optical systems, including precision lenses and reflectors, to deliver high uniformity, controlled glare, and optimized beam distribution. Multiple beam angles are available to suit different applications such as stadiums, ports, warehouses, and livestock barns.
-
Yes. Selected Ceramiclite sports floodlighting solutions are designed to meet professional sports lighting standards, offering high lumen output, excellent uniformity, low glare, and flicker-free performance suitable for HD and broadcast-grade environments.
-
Yes. Optical configurations, beam angles, and light distribution patterns can be customized according to project requirements, including pole height, installation layout, and target illumination levels.
