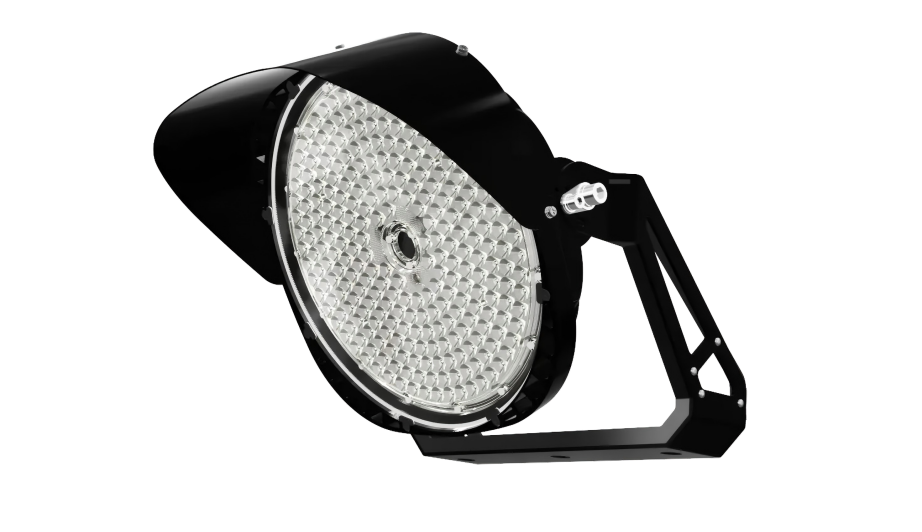

Sports light SL04
Introduction

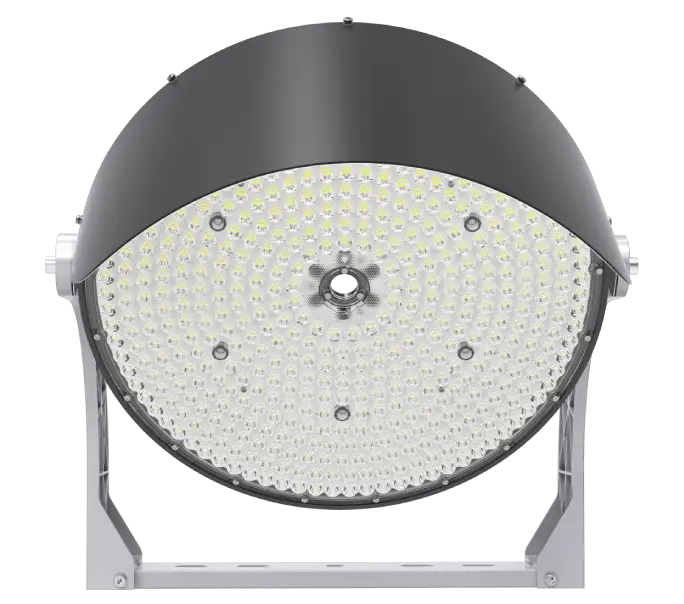

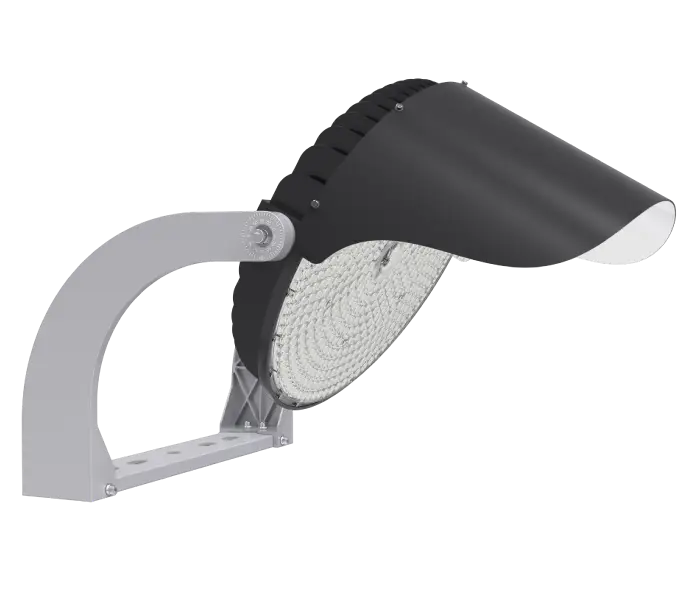

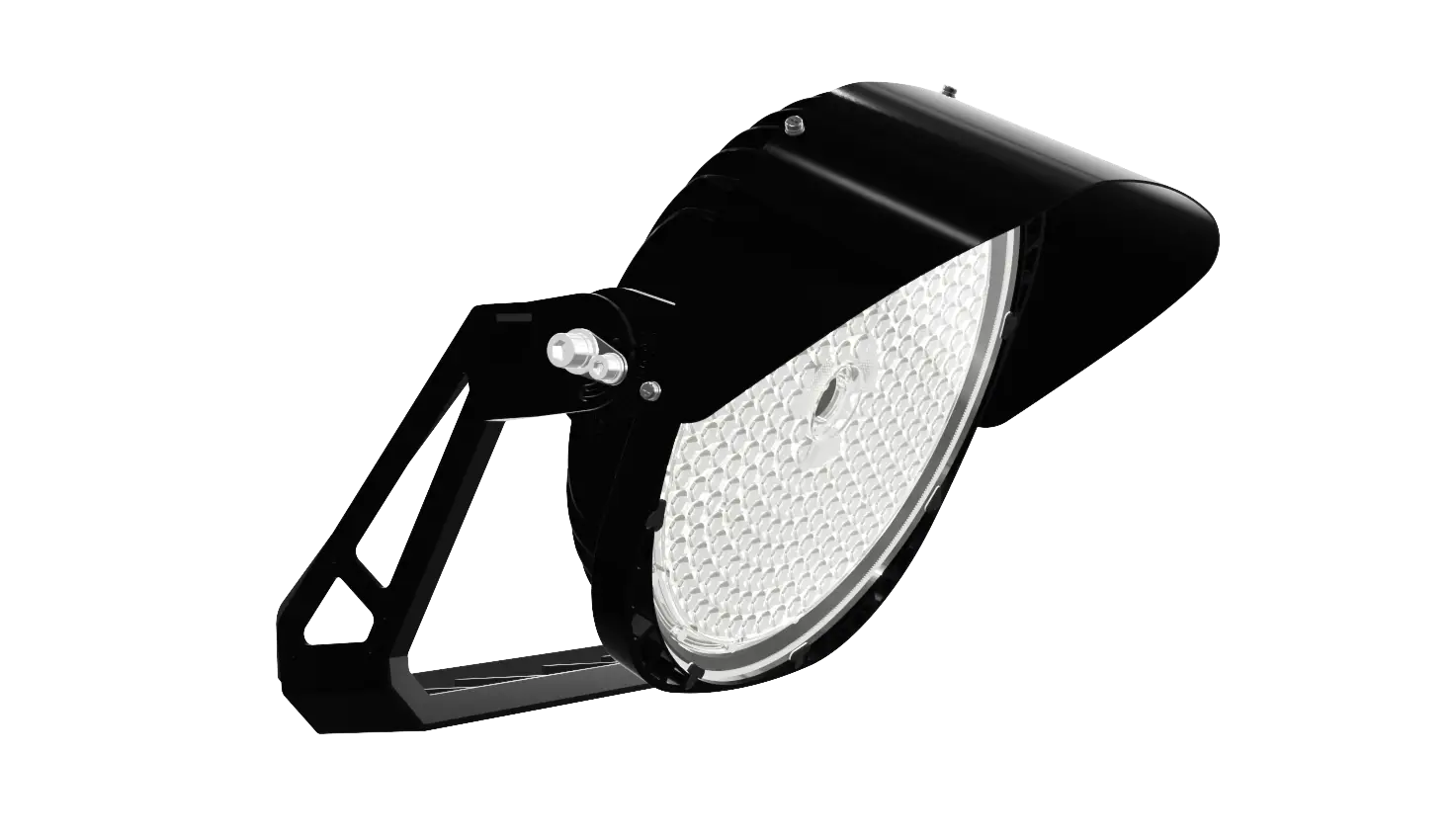

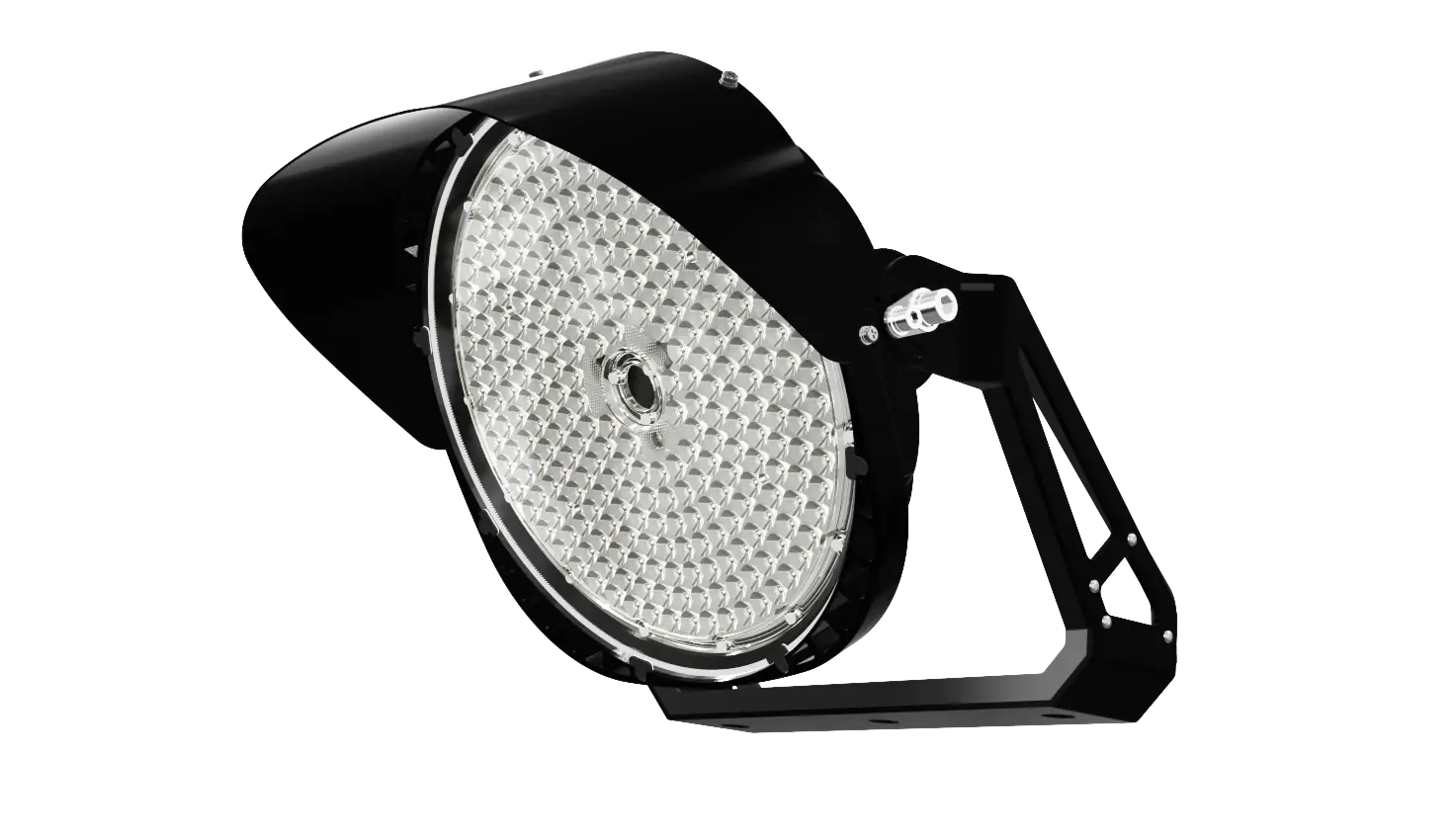

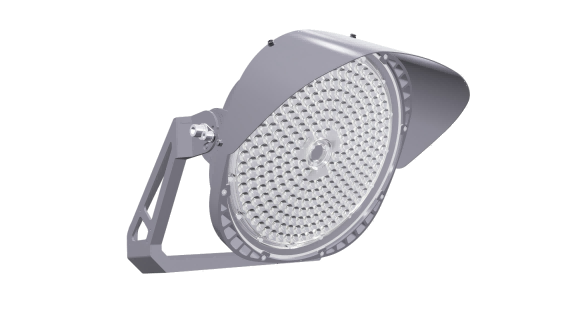

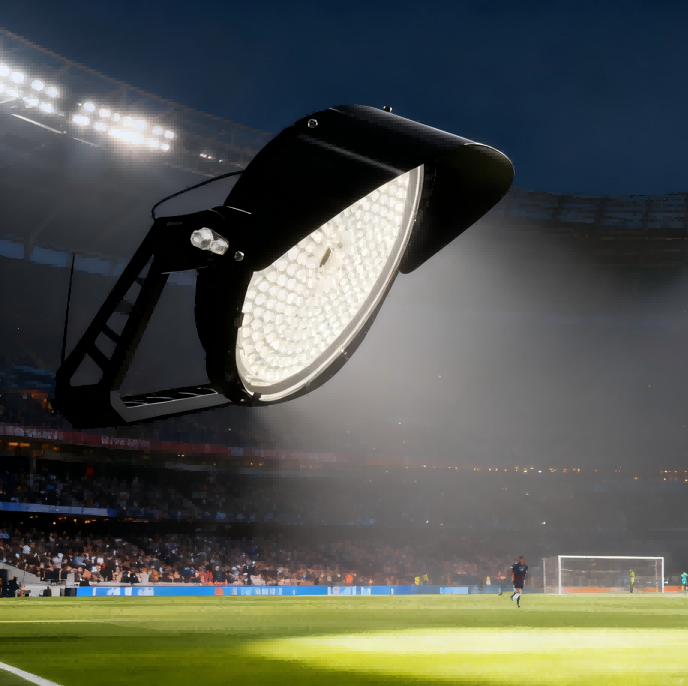

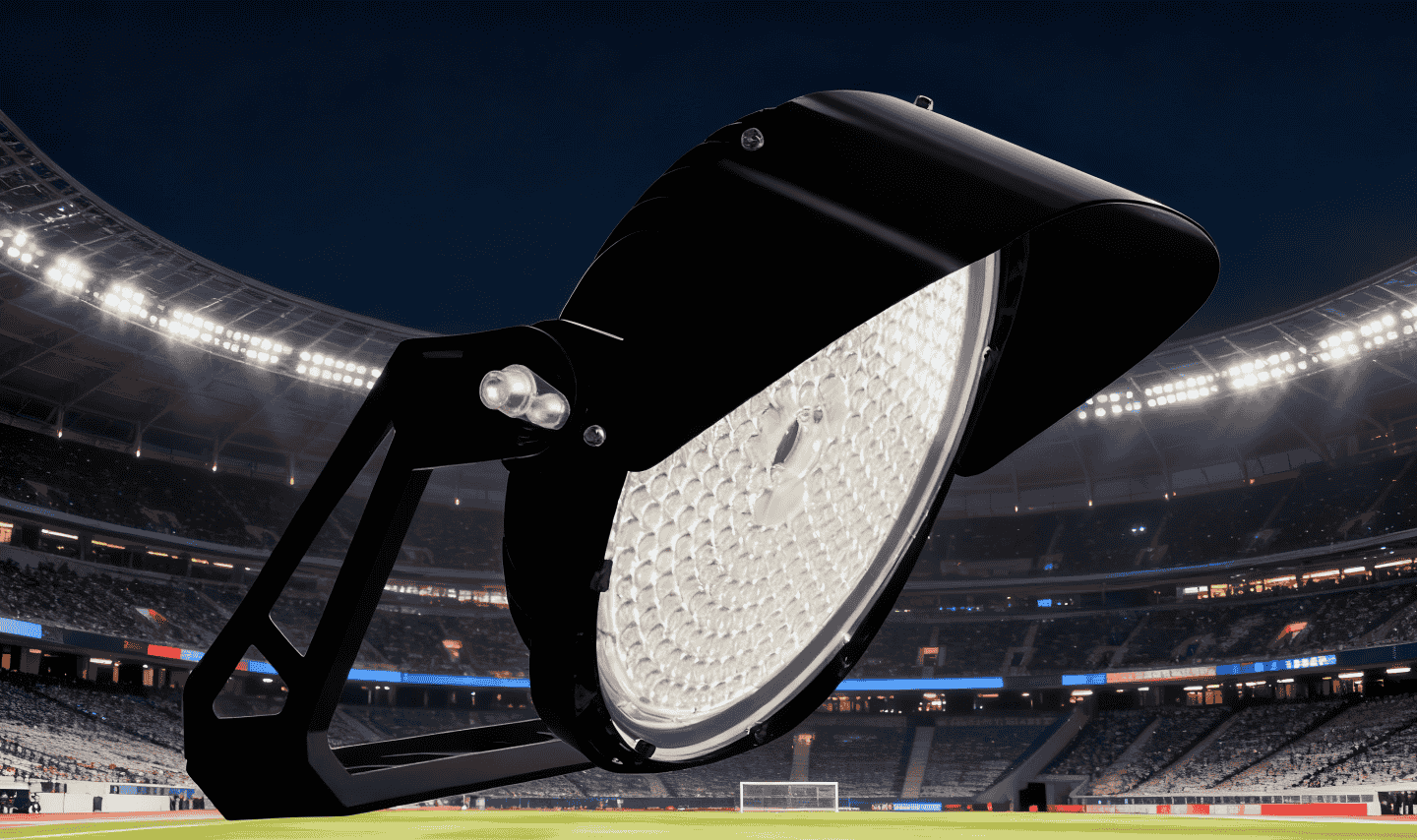

The SL04 LED stadium light delivers professional-grade illumination engineered for demanding sports venues. Featuring opto-electrical separation and compatibility with multiple smart dimming protocols (0–10V, DALI, DMX), the LED sports light ensures flexible lighting control for stadiums and training grounds. Its snap-on structure and plug-and-play wiring enable quick installation, while the optional driver-in-box design simplifies maintenance and seamless HID fixture replacement.
Built for durability, the SL04 stadium LED light offers IP66/IK08 protection, advanced glare control, and a 8-year warranty, making it ideal for high-intensity sports applications.

Flood Light Advantages
1. High-Efficiency Ceramic Core: Advanced ceramic LED technology delivers outstanding thermal management and significantly extends service life.
2. Smart Structural Design: Ergonomic construction improves safety during high-altitude installation and reduces overall labor costs.
3. Opto-Electrical Separation: Lowers material expenses, enhances durability, and supports HID replacement through both standalone and distribution box installations.
4. Smart Control Ready: Compatible with 0–10V, PWM, DALI, DMX, Synapse, and other dimming protocols for intelligent lighting management.

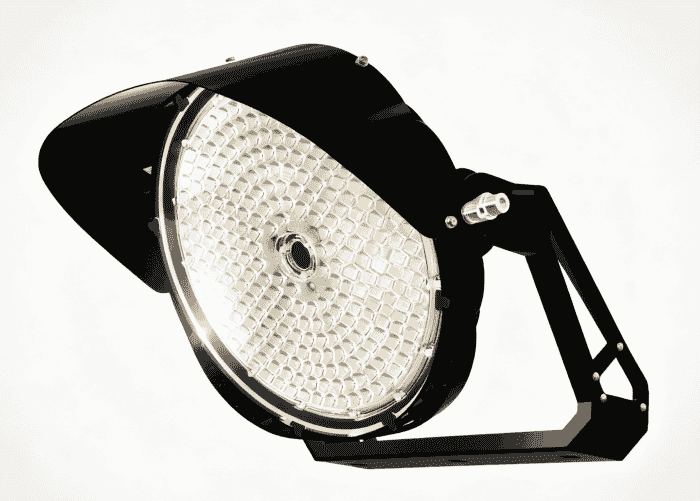

5. Low Glare & Spill Control: Standard visor with optional louver minimizes glare and reduces light pollution.

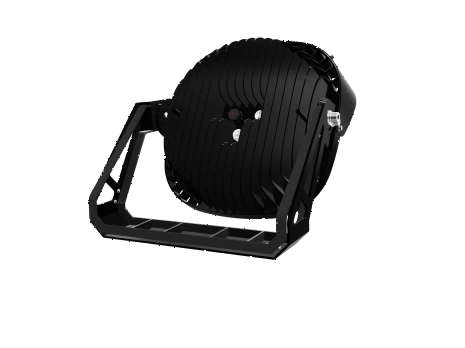

6. Advanced Thermal Management: Flat heat sink design optimizes airflow for efficient cooling and long-lasting performance.
7. Fast & Precise Installation: Plug-and-play wiring, snap-on assembly, and 2.5° incremental tick marks enable accurate aiming and quick setup.
8. Rugged Environmental Protection: IP66 and IK08 ratings plus bird-proof PVC cabling ensure reliability in harsh outdoor conditions.
9. Driver-in-Box Option: Simplifies maintenance and provides seamless HID retrofit compatibility.
10. Flexible 3-in-1 Power Adjustment: Adjustable output settings accommodate a wide range of applications.
11. 8-Year Warranty: Guaranteed dependable performance and long-term value.
12. Proven Longevity – Laboratory tested to L80B10 @ 102,000 hours (45 °C) and L90B30 @ 51,000 hours (45 °C).

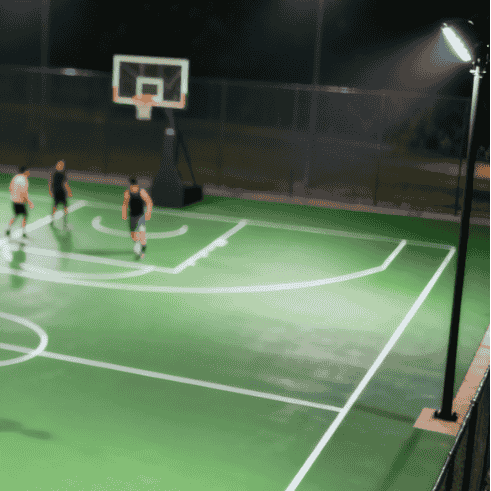

Application
Explore Ceramiclite's sports application collection for premium lighting solutions tailored to arenas, fields, and courts.

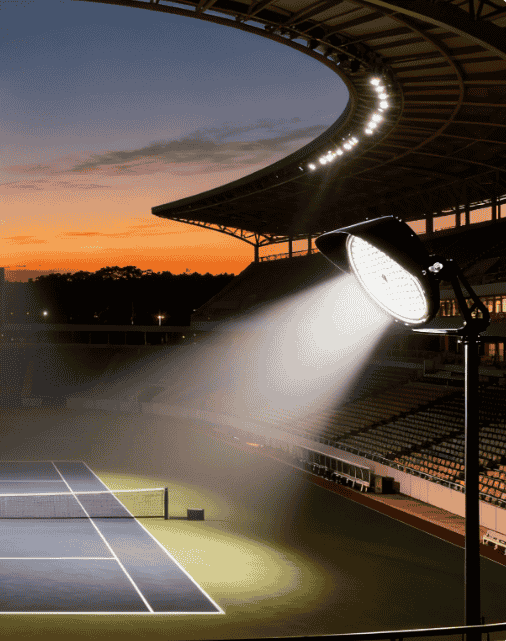

Tennis Court Lighting

Football Field Lighting

Badminton Court Lighting

Sports Court Lighting
Dimension

Specifications
Model No.
SL04-0600/0800/1000/1200
Wattage
600W/800W/1000W/1200W
Lumen Flux(±10%)
96,000Lm/128,000Lm/160,000Lm/192,000Lm
Efficacy(5700KRa)
≥160Lm/W
Beam Angle
12°/15°/22°/25°/40°/60°
CCT
3000K/4000K/4500K/5000K/5700K/6500K
CRI
≥70/80
SDCM
≤5
Input Voltage
180~277Vac, 90-305Vac, 176-305Vac, 180-528Vac, 50/60Hz
Power Factor
≥0.95

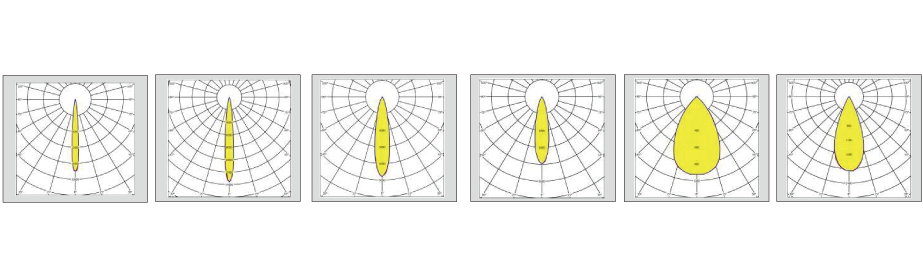

Beam Angle
