Sports Light SL04
Ceramiclite SL04 LED Stadium Light
Brighter Fields. Smarter Control.
Engineered for modern sports facilities, the Ceramiclite SL04 LED Stadium Light delivers professional and broadcast-grade uniform lighting with intelligent control, exceptional durability, and simplified installation. From stadiums to community fields, the sports LED floodlight ensures brilliant, uniform, and flicker-free lighting performance that meets the toughest demands.

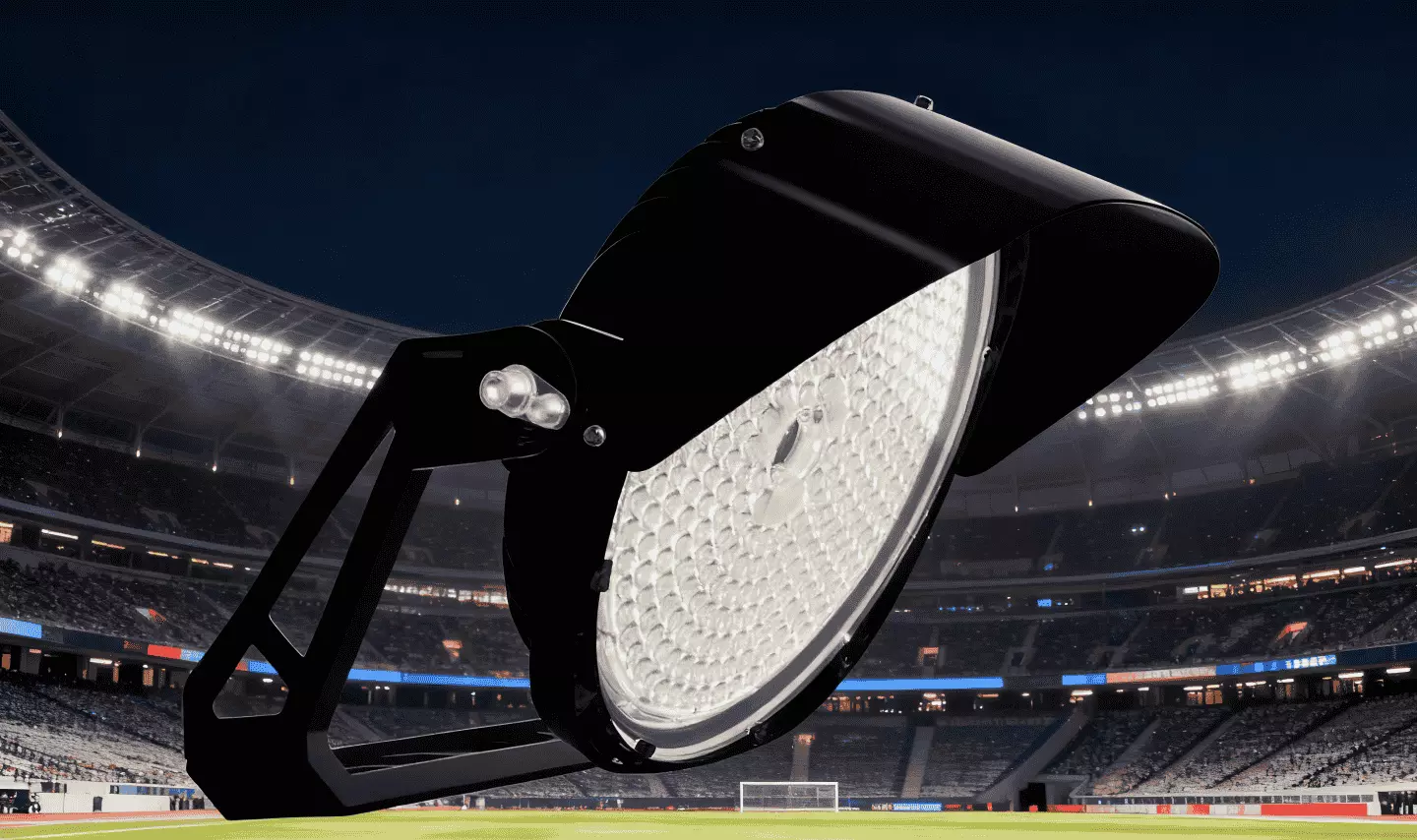

Broadcast‑grade Stadium Lighting
Specifically engineered for professional community sports venues, the SL04 LED floodlight ensures powerful, uniform illumination that meets international stadium lighting standards. The robust design and precision optics of this LED sports light make it the ideal choice for football fields, arenas, and multi-sport complexes.
.webp)
Smart Lighting Control.
Fully compatible with 0–10V, PWM, DALI, DMX, and Synapse dimming systems, the SL04 LED sports light offers flexible and precise lighting management for every match or event.
.webp)
Lighting for Every Game.
Ideal for stadiums, training fields, tennis courts, football pitches, and multi-sport arenas — the SL04 sports LED floodlight delivers high-performance, energy-efficient lighting that enhances visibility, reduces glare, and elevates every sporting experience.
.webp)
.webp)
.webp)
.webp)
Dimension
Beam Angle
LED Floodlight Applications
Featuring broadcast‑grade quality and precision optical design, the SL04 sports LED floodlight is ideal for many professional sports courts and stadiums.

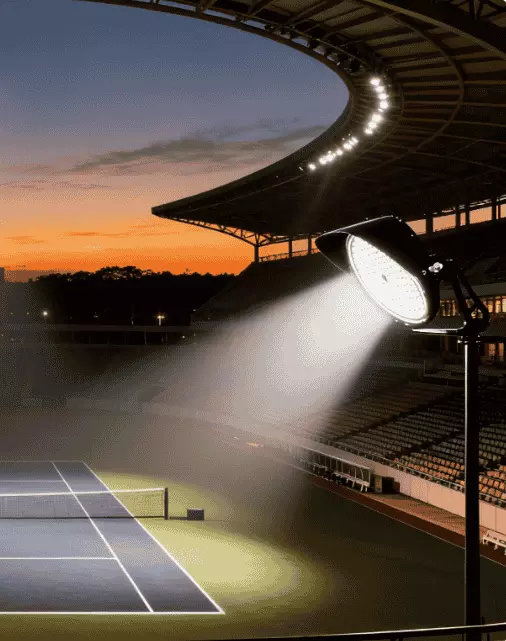

Tennis Court Lighting

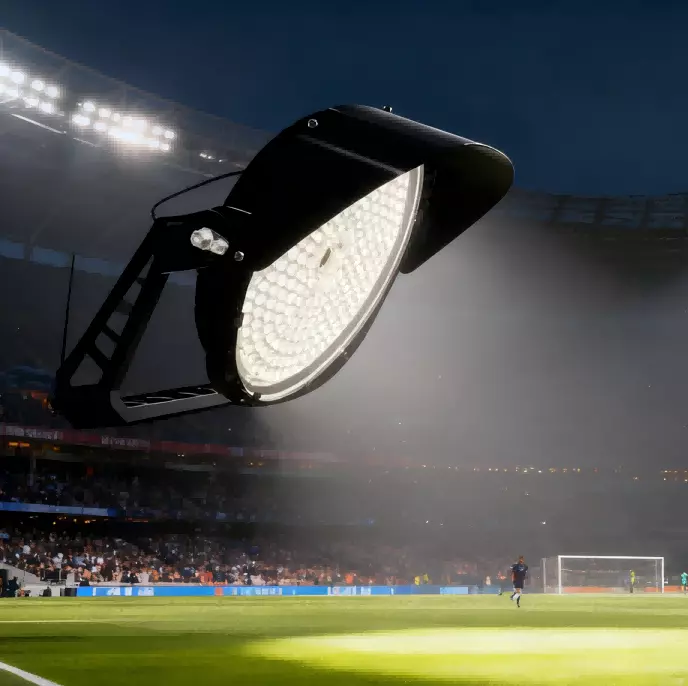

Football Field Lighting
_2.webp)
Badminton Court Lighting
.webp)

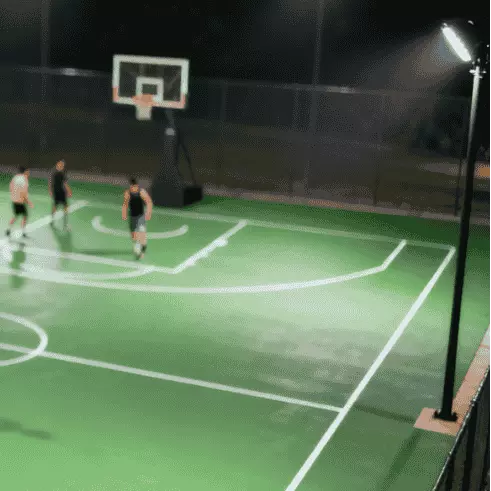

Basketball Court Lighting
Specifications
Model No.
SL04-0600/SL04-0800/SL04-1000/SL04-1200
Wattage
600W/800W/1000W/1200W
Lumen Flux(±10%)
96,000Lm/128,000Lm/160,000Lm/192,000Lm
Efficacy(5700KRa)
≥160Lm/W
Beam Angle
12°/15°/22°/25°/40°/60°
CCT
3000K/4000K/4500K/5000K/5700K/6500K
CRI
≥70/80
SDCM
≤5
Input Voltage
180~277Vac, 90-305Vac, 176-305Vac, 180-528Vac, 50/60Hz
Power Factor
≥0.95
THD
≤10%
Percent Flicker（%）
≤1%
Surge Protetion
10KV/20KV
Protetion Against Electric
ClassI
IP
IP66
IK
IK08/IK10
Operation Temp Range
-40°C~+45°C(Outdoor Environment)
Lifetime
51,000H(L90B30@45°C)/102,000H(L80B10@45°C)
Intelligent Control
0-10V Dimming/Non-dimming/Dali-2&D4i/DMX-RDM
Certificate
ENEC/CB/SAA/ETL/CE/LM-79/TM-21
Structure
Die-casting/High Thermal Conductivity Aluminum
Finish
WF1 (Neutral Salt Spray Test 1000 hours)
WF2 (Neutral Salt Spray Test 1500 hours)
Lens
Polycarbonate
Color
Black
Frequently Asked Questions
We help the world’s leading organizations follow their shipping
-
Yes. Ceramiclite LED luminaires are engineered for demanding environments, including coastal, marine, industrial, and agricultural settings. Products feature robust housings, high IP ratings, corrosion-resistant materials, and advanced thermal management to ensure stable performance in harsh conditions.
-
Ceramiclite uses professional-grade optical systems, including precision lenses and reflectors, to deliver high uniformity, controlled glare, and optimized beam distribution. Multiple beam angles are available to suit different applications such as stadiums, ports, warehouses, and livestock barns.
-
Yes. Selected Ceramiclite sports floodlighting solutions are designed to meet professional sports lighting standards, offering high lumen output, excellent uniformity, low glare, and flicker-free performance suitable for HD and broadcast-grade environments.
-
Yes. Optical configurations, beam angles, and light distribution patterns can be customized according to project requirements, including pole height, installation layout, and target illumination levels.
