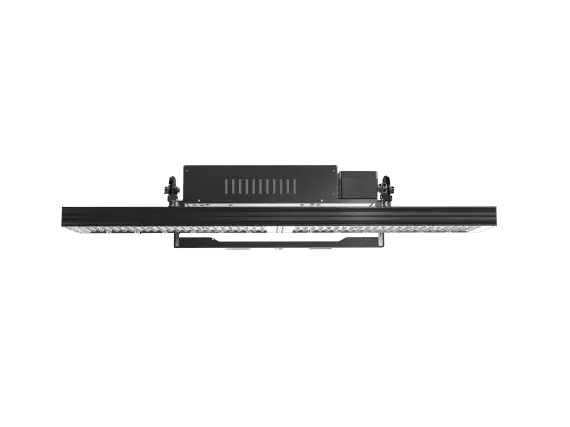

SL05 Sports LED Light

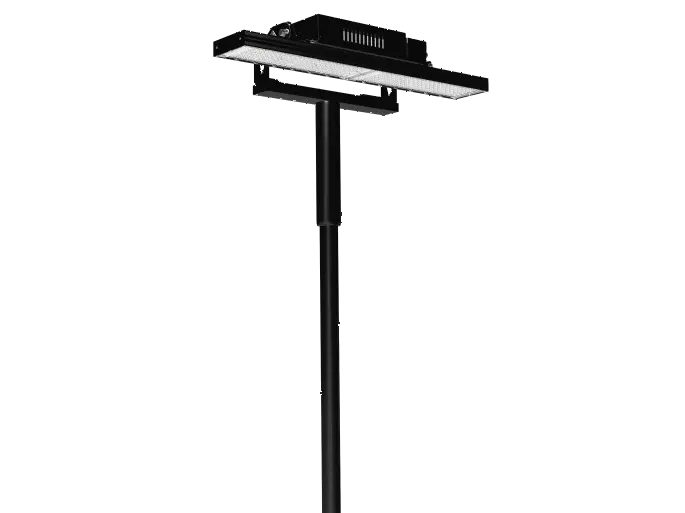

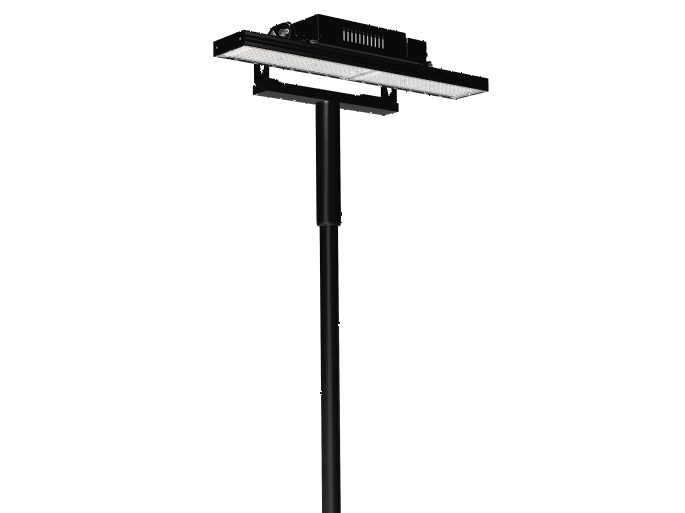

SL05 Sports LED Floodlight
Powerful linear lighting
for sports fields.
Engineered for demanding outdoor sports and stadiums, the SL05 LED floodlight delivers high-power performance, exceptional uniformity, and long-life reliability with advanced ceramic LED technology.
Uniform, high-quality lighting.
With its innovative linear optical design, the SL05 LED floodlight ensures superior illumination uniformity, reduced glare, and enhanced visual comfort for athletes, spectators, and broadcast systems. From stadiums to training fields, it provides stable, high-efficiency light that performs in any condition.
.png)

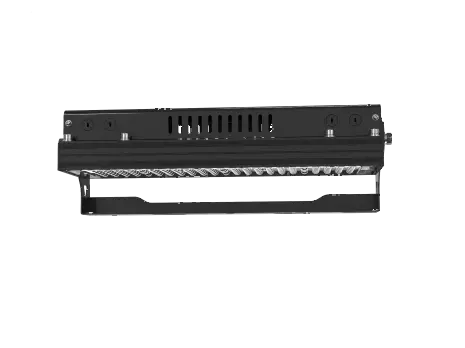

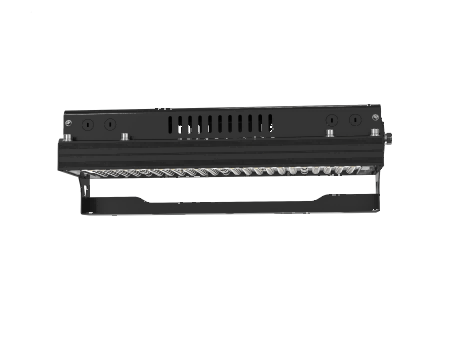

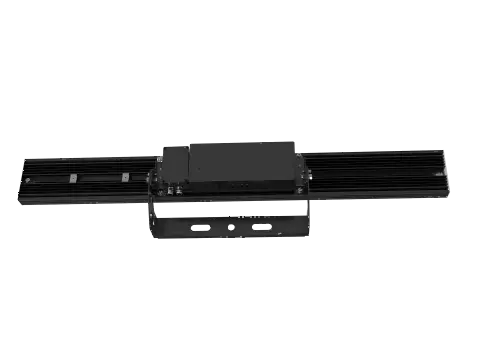

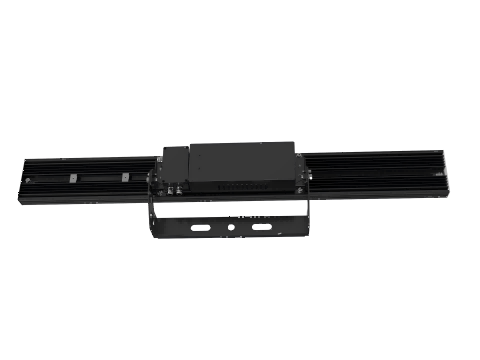

Choose the model
that fits your project.
Available in 200W, 400W, and 600W, the sports LED floodlight offers lumen packages up to 102,000 lm with industry-leading efficacy of 170 lm/W. Multiple beam angle options (T030-000 / T120-045) allow precise light distribution tailored to different sports field layouts.

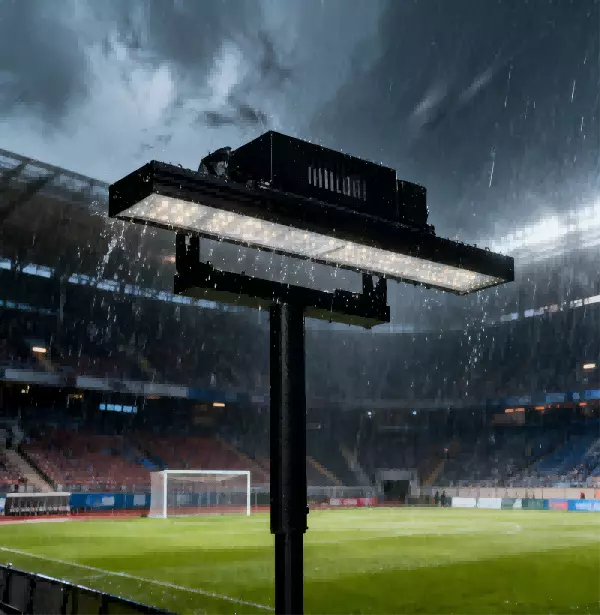

Built to withstand the toughest environments
Rated IP66, IK10, and C4 corrosion-resistant, the SL05 stands strong against rain, dust, impacts, ammonia, and saline environments. With 20kV surge protection, it keeps performing even under harsh lightning and electrical conditions.
.png)

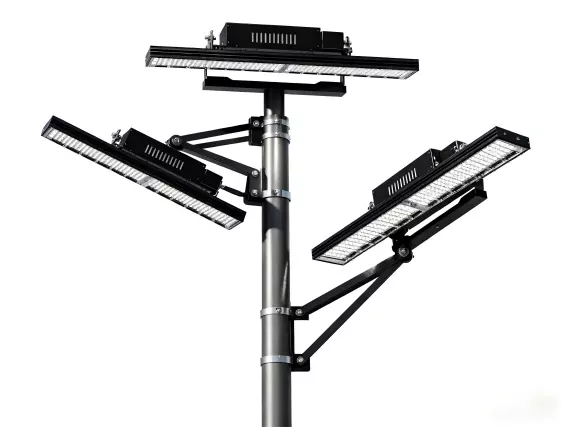

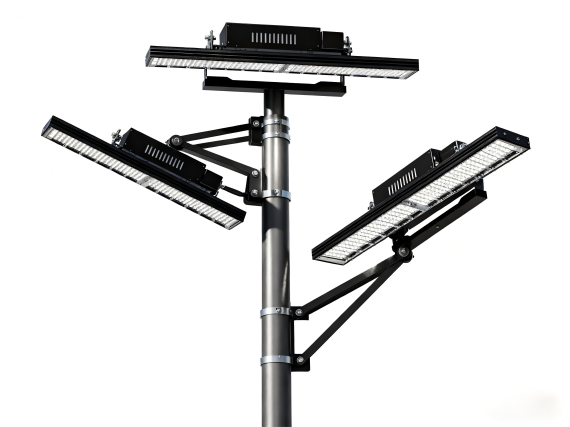

Flexible installation without compromise.
The adjustable mounting bracket gives installers the freedom to angle and position fixtures without interference—even when multiple luminaires share the same pole. Lightweight modular construction reduces pole load and simplifies maintenance.
.png)
Smart control for modern sports lighting.
Control your field lighting the way you need it. The SL05 supports 0–10V, DALI-2 & D4i, and DMX-RDM protocols, delivering smooth dimming, scene control, and integration with professional lighting management systems.
.png)

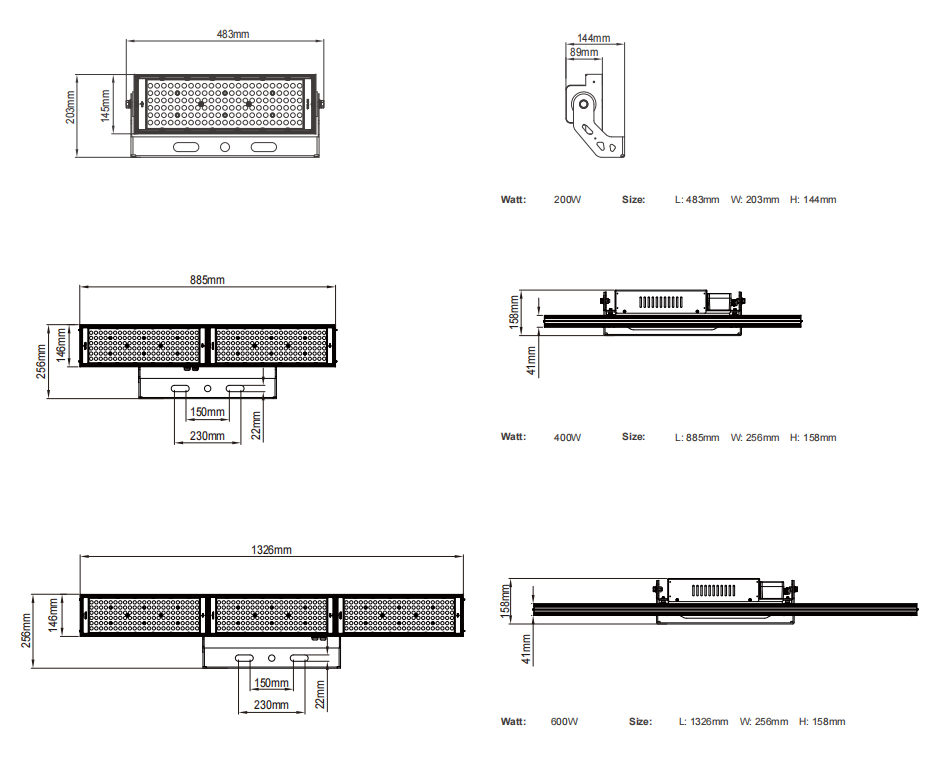

Dimension
The SL05 LED sports light features a streamlined linear housing designed for easy pole, wall, and bracket mounting. Its modular structure ensures consistent dimensions across wattage options, allowing effortless installation, precise aiming, and stable performance in outdoor sports and industrial environments.

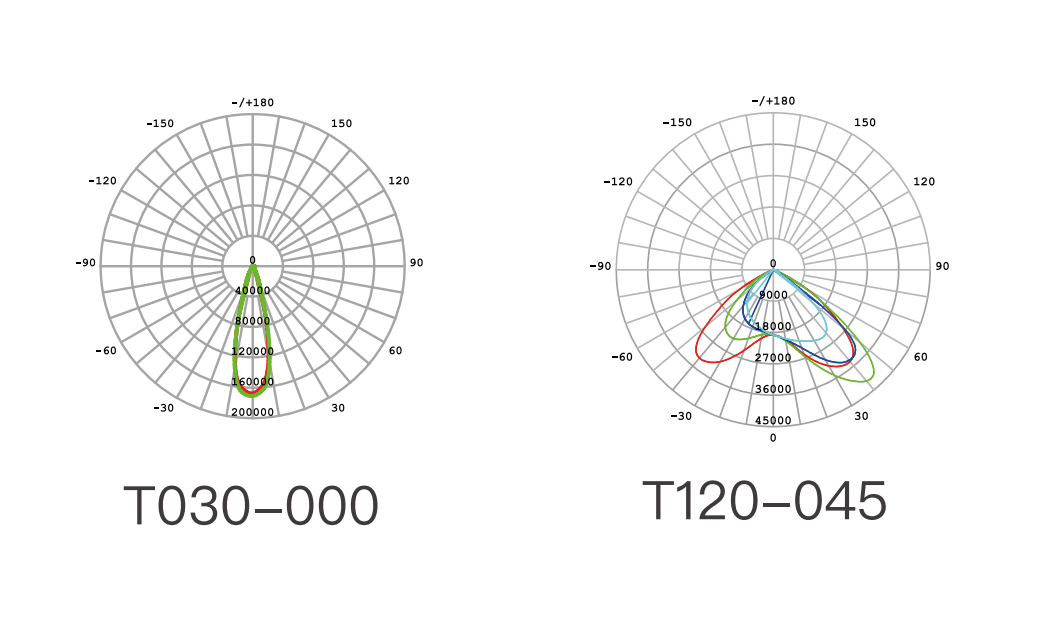

Beam Angle
.png)
Applications
Ideal for outdoor sports venues, training fields, stadium perimeters, ports, and large industrial sites that require high-uniformity, high-power, and long-lasting lighting performance.

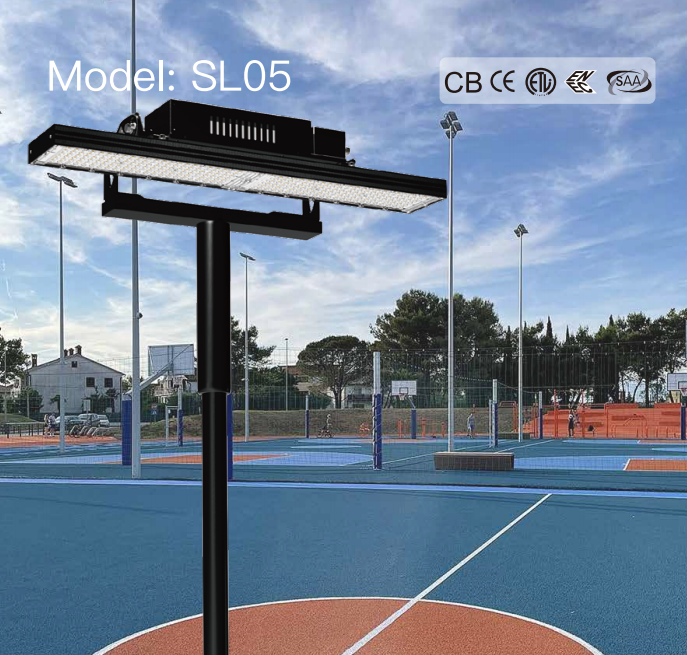

Basketball Court Lighting
Ice Rink Lighting
Pickleball Court Lighting
Port LED Lighting
Specifications
Model No.
SL05-200; SL05-400; SL05-600
Wattage
200W; 400W; 600W
Lumen Flux(±10%)
34,000Lm; 68,000Lm; 102,000Lm
LED5050 Efficacy
170lm/W
Beam Angle
T030-000/T120-045
CCT
3000K/4000K/4500K/5000K/5700K/6500K
CRI
≥70/80/90
SDCM
≤5
Input Voltage
277~480Vac,50/60Hz/200~240Vac,50/60Hz
Power Factor
≥0.95
THD
≤10%
Surge Protetion
20KV
Protetion Against Electric
ClassI
IP
IP66
IK
IK10
Operation Temp Range
-20°C~40°C(Outdoor Environment)
Lifetime
102,000H(L80B10@40°C)
Intelligent Control
0-10V Dimming/Dali-2&D4i/DMX-RDM
Certificate
ENEC/SAA/CE/CB
Driver Brand
INVENTRONICS/DONE
Finish
C4 (Neutral Salt Spray Test, 1000 hours)
